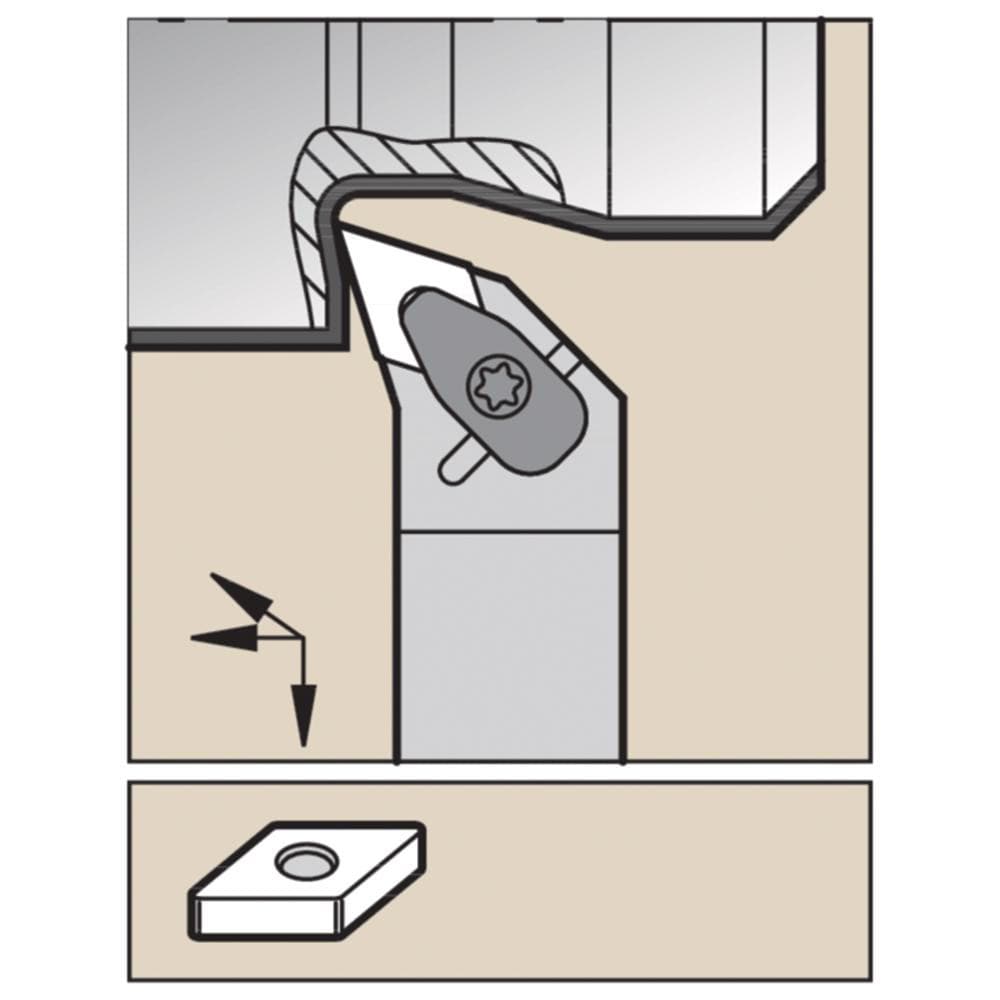

Brand: Widia / Part #: 5564339
Item #: 99317158
Brand: Widia
Model #: 5564339
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 43. |
| Toolholder Style | DDQNR |
| Rake | Negative |
| Rake Angle | 0 (Axial);0 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 107.500 |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Width (Inch) | 1 |
| Insert Compatibility | DN..43. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Series | DDQN |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Cutting Tool Application | Copying; Turning |
| Head Length (Decimal Inch) | 1.3800 |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Width (Inch) | 1/2 |
| Insert Width (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
| ISO Number | DDQNR164CKC3 |
| Complete Insert Compatibility | DN.. |
| Coolant Through | No |
| Insert Thickness (Decimal Inch) | 0.2500 |
