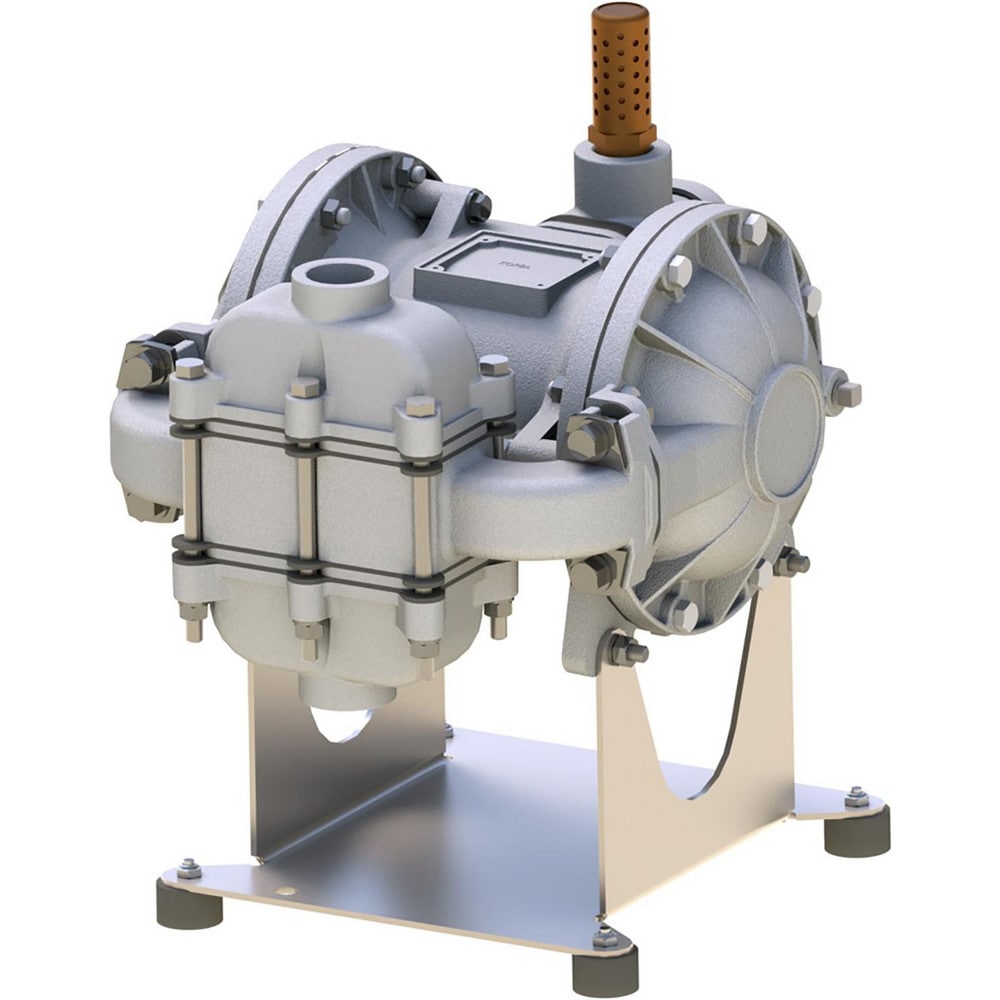

Air-Operated Diaphragm Pumps; Maximum Flow Rate (Gpm
Item #: 02365237
Brand: SandPIPER
Model #: SB1,SGN5SS.
Product Specifications
| Maximum Flow Rate (Gpm - 2 Decimals) | 42.00 |
| Maximum Working Pressure | 125.000 |
| Thread Type | NPT |
| Inlet Size | 1 in |
| Cubic Feet Per Minute | 50 SCFM |
| Diaphragm Material | PTFE; Neoprene |
| Ball Material | PTFE |
| Check Seat Material | Stainless Steel |
| Height (Inch) | 14.55 |
| Width (Inch) | 11.36 |
| Length (Inch) | 13.9 |
| Port Type | NPT |
| Body Material | Stainless Steel |
| Maximum Temperature (F) ( - 0 Decimals) | 220.000 |
| Maximum Solid Size (Inch) | 1 |
| Air Inlet Size (Inch) | 1/2 |
| Maximum Cubic Feet Per Minute (CFM) | 50.00 |
| UNSPSC Code | 40151548 |
