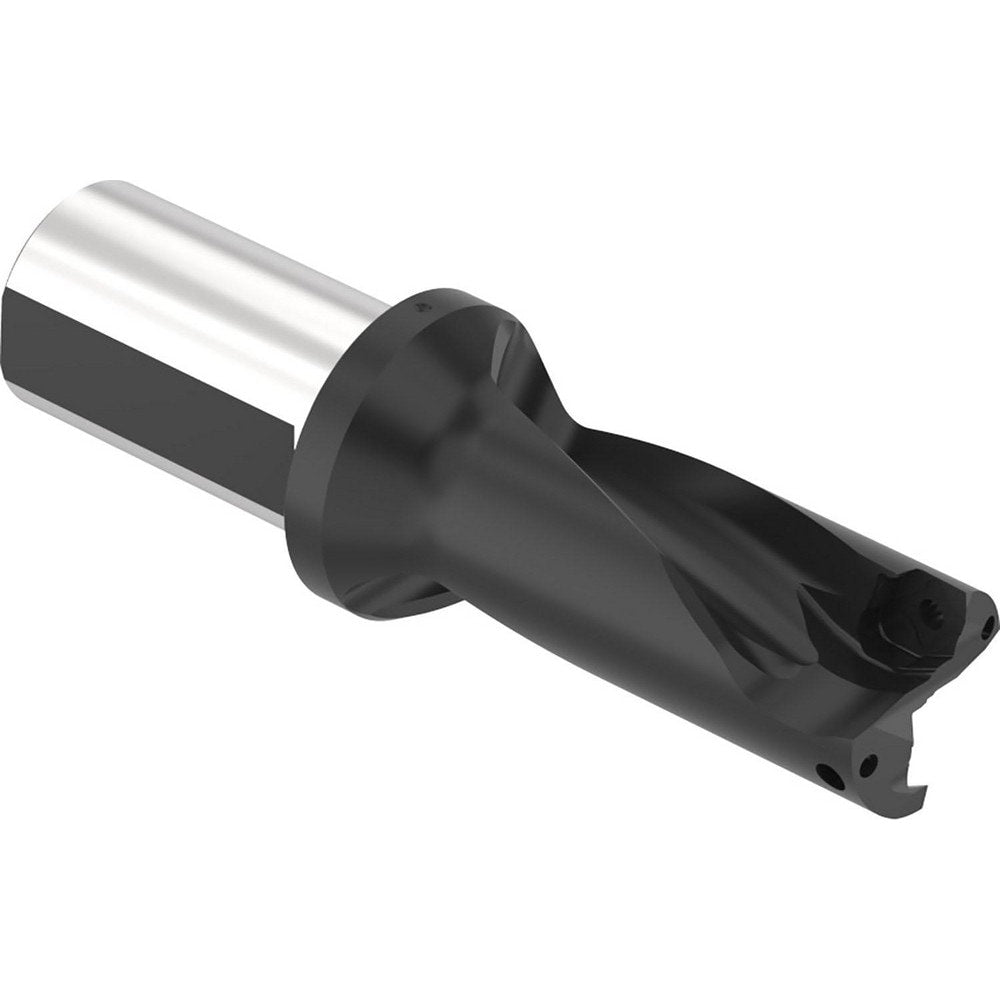

Brand: Allied Machine and Engineering / Part #: D2141687I-40FM
Item #: 99376709
Brand: Allied Machine and Engineering
Model #: D2141687I-40FM
Product Specifications
| Drill Style | D214 |
| Maximum Drill Diameter (Inch) | 1-11/16 |
| Maximum Drill Diameter (Decimal Inch) | 1.6870 |
| Drill Diameter (Inch) | 1-11/16 |
| Maximum Drill Depth (mm) | 85.70 |
| Shank Type | Flange |
| Shank Diameter (mm) | 40.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | IC |
| Compatible Insert Size Code | 14 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 185.4000 |
| Series | 4TEX |
| Flute Length (mm) | 116.40 |
| Shank Length (Decimal Inch) | 2.7170 |
| Shank Length (mm) | 69.000 |
| Minimum Drilling Diameter (Decimal Inch) | 1.6870 |
| Coolant Through | Yes |
