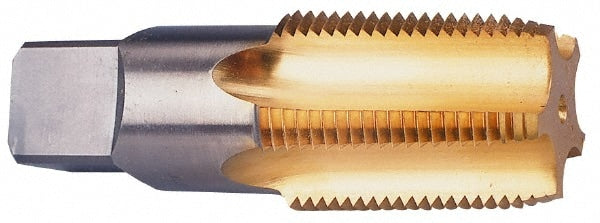

Brand: Widia / Part #: 2746397
Item #: 70746532
Brand: Widia
Model #: 2746397
Product Specifications
| Thread Standard | NPT |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 2.1300 |
| Threads per Inch | 27 |
| Thread Size (Inch) | 1/8-27 |
| Application | Tapping |
| Hook | Regular |
| Tap Type | Straight Flute |
| Material Application | Steel |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Square Size (Decimal Inch) | 0.3280 |
| Chamfer | Plug |
| Thread Profile | Standard |
| Series | 5320; 2320 |
| Thread Length (Decimal Inch) | 0.7500 |
| Coating/Finish | TiN |
| Thread Pitch (Decimal Inch) | 0.0370 |
| Square Length (Decimal Inch) | 0.3750 |
| Projection (Decimal Inch) | 1.7550 |
| Thread Depth (Decimal Inch) | 0.7500 |
| Number Of Flutes | 4 |
