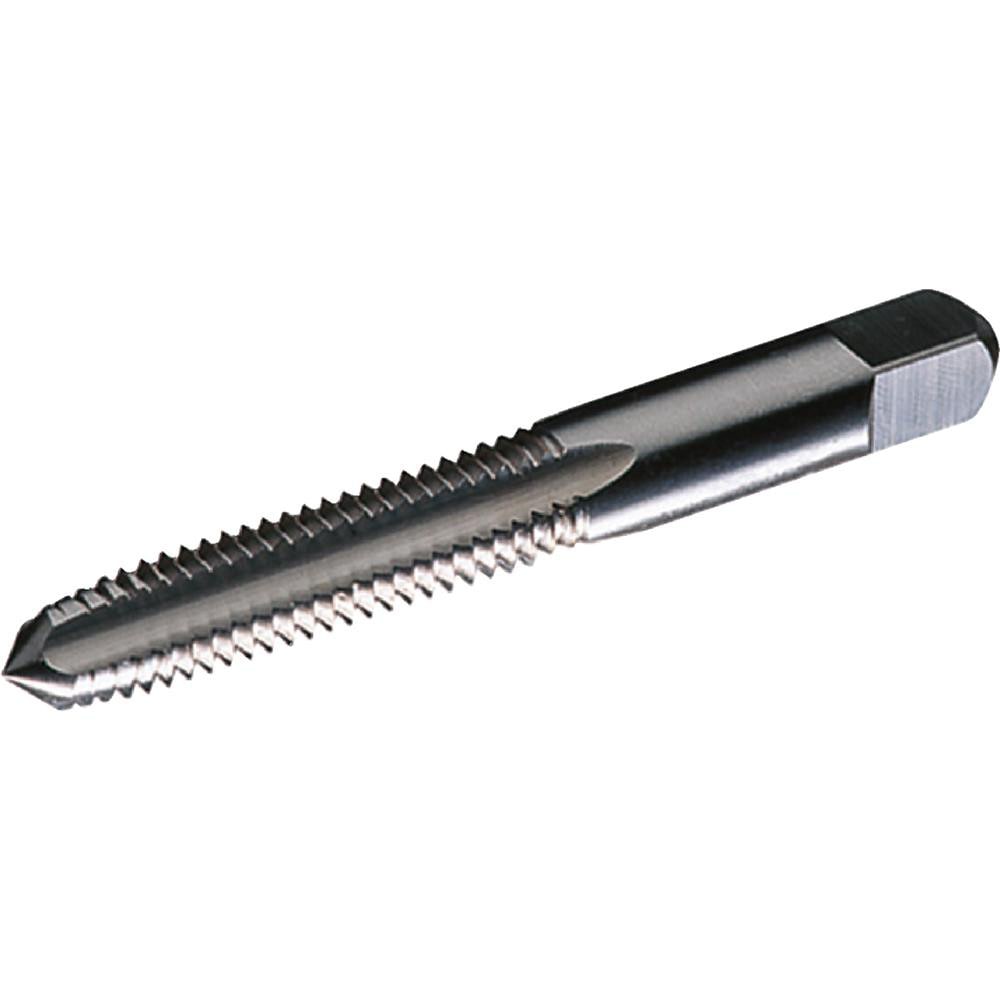

Brand: Widia / Part #: 2750409
Item #: 99813503
Brand: Widia
Model #: 2750409
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M16x2 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 13 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 96.8400 |
| Thread Pitch (mm) | 2.00 |
| Thread Length (mm) | 46.04 |
| Thread Depth (mm) | 46.04 |
| Application | Metal |
| Shank Diameter (mm) | 12.1900 |
| Square Length (mm) | 14.29 |
| Square Size (mm) | 9.14 |
| Series | 7353 |
| Shank Length (mm) | 50.800 |
| Shank Length (Decimal Inch) | 2.0000 |
