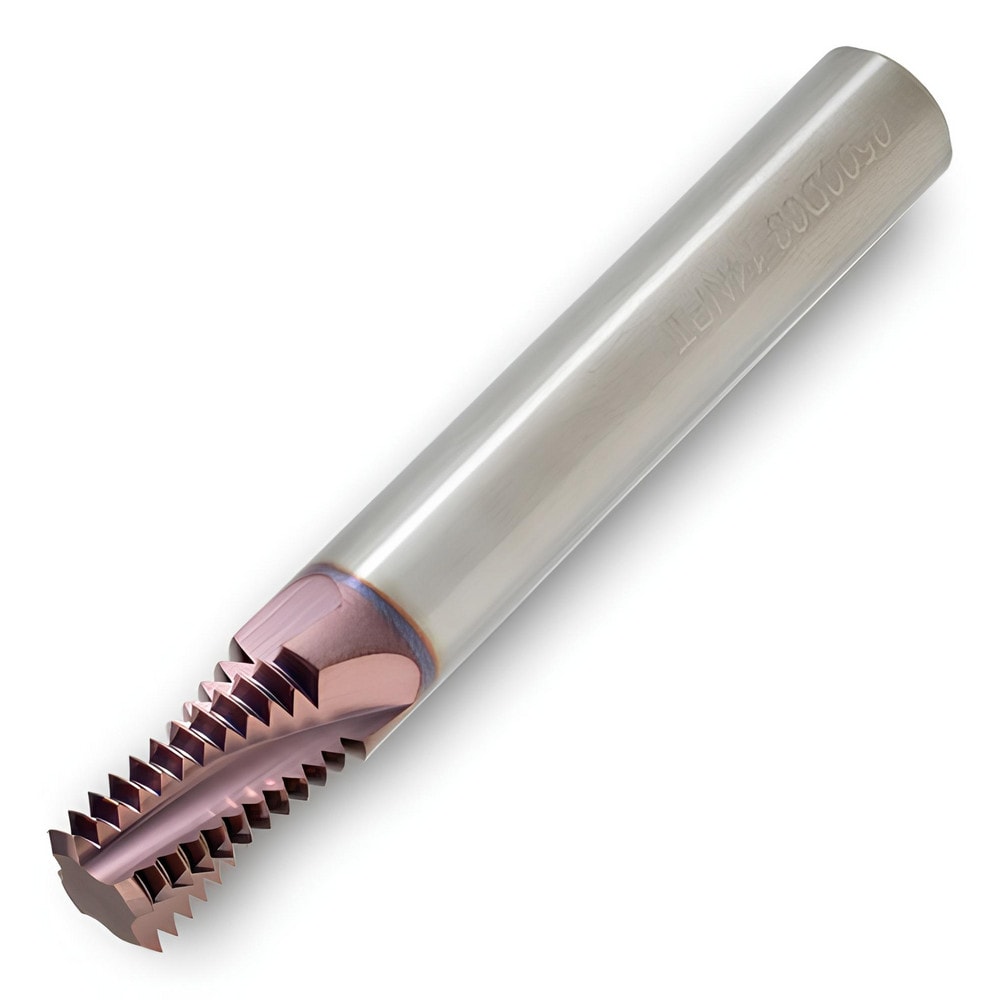

Brand: Ingersoll Cutting Tools / Part #: 5603911
Item #: 51776656
Brand: Ingersoll Cutting Tools
Model #: 5603911
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 2-1/2 |
| Thread Depth | 1.5600 |
| Thread Depth (Decimal Inch) | 1.5600 |
| Thread Type | NPT |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Minimum Nominal Diameter (Decimal Inch) | 2.5000 |
| Shank Length (Decimal Inch) | 2.4400 |
| Overall Length (Decimal Inch) | 4.0000 |
| Thread Standard | NPT |
| Thread Mill Type | Mini |
| Flute Direction | Right Hand |
| Material Grade | IN2005 |
| Series | MTEC-NPT |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5600 |
| Thread Length (Decimal Inch) | 1.5600 |
| Teeth Per Inch | 8 |
