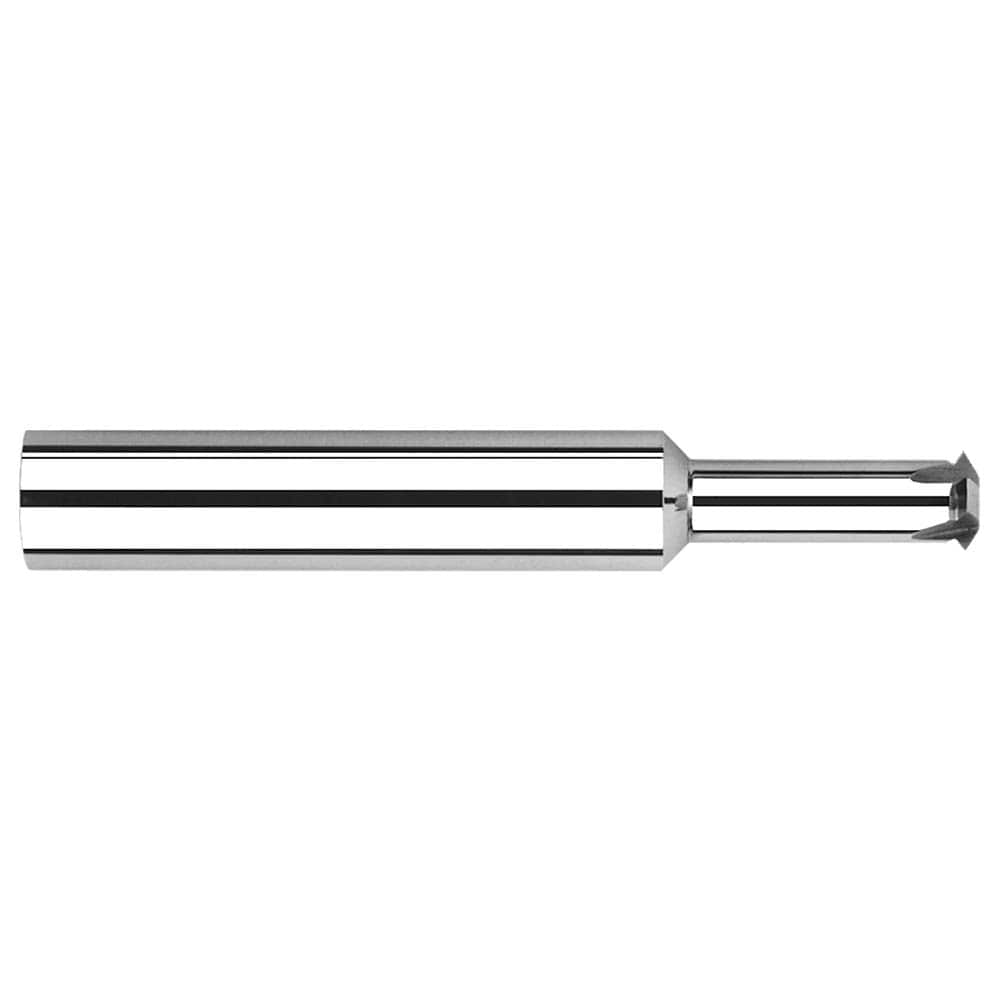

Brand: Harvey Tool / Part #: 54201
Item #: 82498395
Brand: Harvey Tool
Model #: 54201
Product Specifications
| Maximum Threads Per Inch | 90 |
| Minimum Pitch (Decimal Inch) | 0.0111 |
| Minimum Threads Per Inch | 90 |
| Maximum Pitch (Decimal Inch) | 0.0111 |
| Material | Solid Carbide |
| Thread Type | Internal/External |
| Thread Size | #00-90 |
| Thread Depth (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Cutting Diameter (Decimal Inch) | 0.0320 |
| Minimum Nominal Diameter (Inch) | #00 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Neck Diameter (Decimal Inch) | 0.0160 |
| Shank Length (Decimal Inch) | 1.3750 |
| Series | Thread Milling Cutters - Single Form - UN Threads |
| Thread Standard | UN 60 Degree |
| Number Of Flutes | 2 |
| Coating/Finish | Uncoated |
