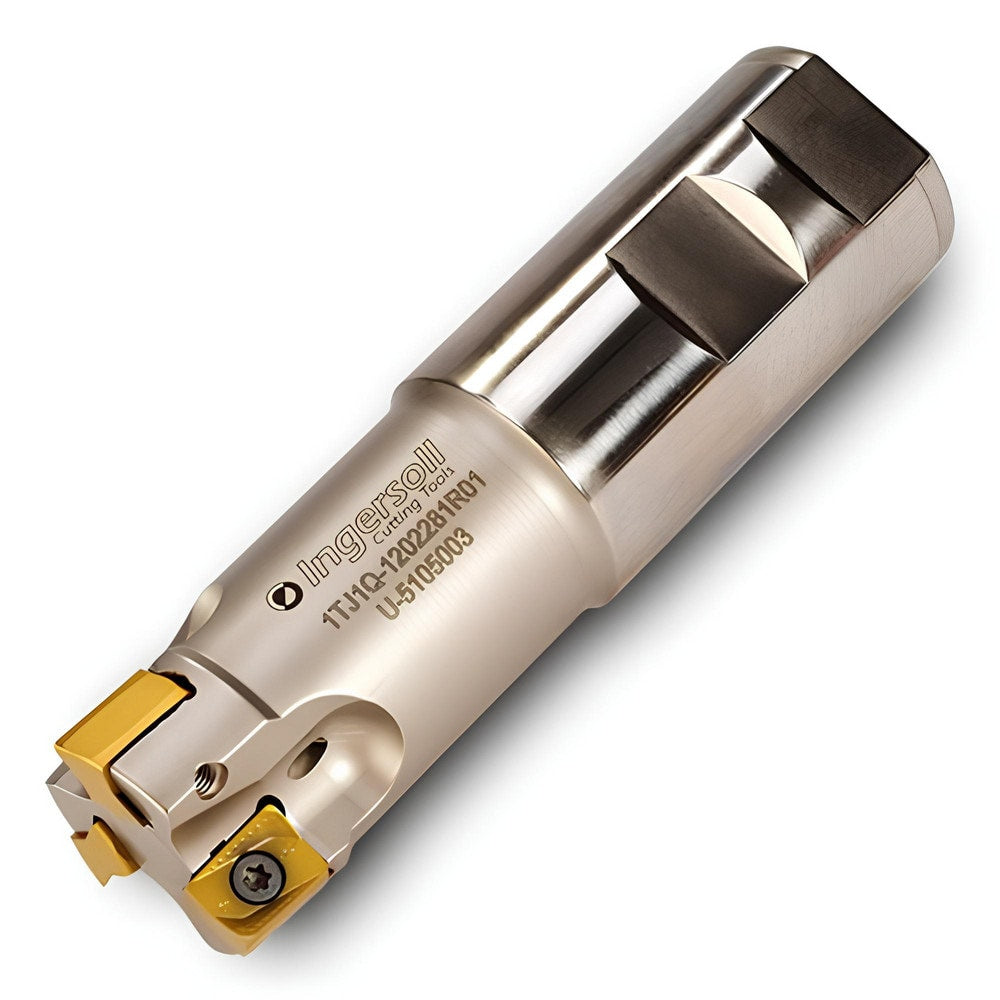

Brand: Ingersoll Cutting Tools / Part #: 3031362
Item #: 96741566
Brand: Ingersoll Cutting Tools
Model #: 3031362
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.9843 |
| Minimum Cutting Diameter (Inch) | 63/64 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Cutting Diameter (Inch) | 63/64 |
| Maximum Depth of Cut (Decimal Inch) | 0.4370 |
| Maximum Depth of Cut (Inch) | 7/16 |
| Cutter Style | 1TJ1Q |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (Inch) | 63/64 |
| Maximum Ramping Angle | 1.7 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 100.0000 |
| Overall Length (Decimal Inch) | 3.9370 |
| Tool Material | Steel |
| Series | 1TJ1Q |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.3622 |
| Shank Length (mm) | 60.000 |
| Head Length (Decimal Inch) | 1.5748 |
| Head Length (mm) | 40.00 |
| Tool Application | Facing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Negative |
| Complete Insert Compatibility | ANxU1206.. |
| Insert Compatibility | ANxU1206.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 1TJ1Q025040W5R00 |
| Usable Length (mm) | 40.000 |
| Number Of Flutes | 4 |
| Usable Length (Decimal Inch) | 1.5748 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
