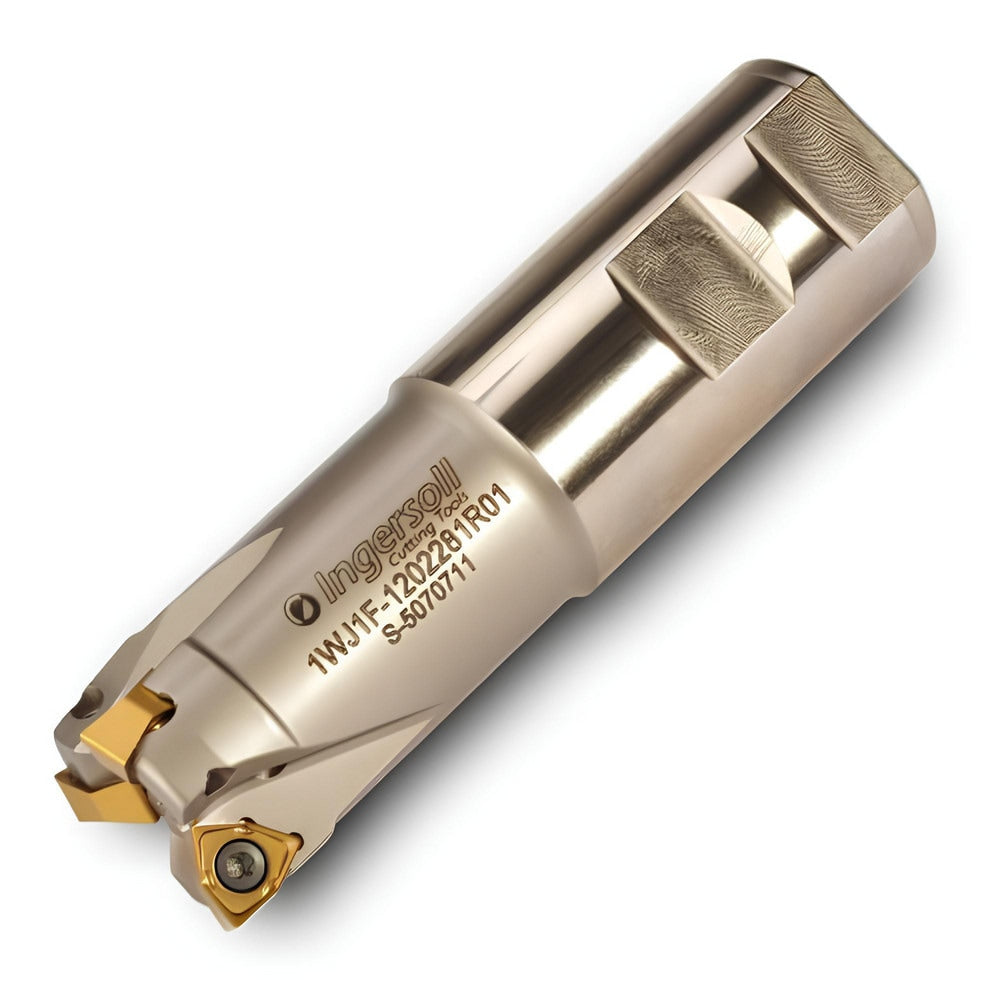

Brand: Ingersoll Cutting Tools / Part #: 2911304
Item #: 47966718
Brand: Ingersoll Cutting Tools
Model #: 2911304
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.2500 |
| Minimum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (mm) | 5.59 |
| Maximum Depth of Cut (Decimal Inch) | 0.2200 |
| Cutter Style | 1WJ1F |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Maximum Ramping Angle | 2 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 114.3000 |
| Overall Length (Decimal Inch) | 4.5000 |
| Tool Material | Steel |
| Series | 1WJ1F |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.2800 |
| Shank Length (mm) | 57.910 |
| Head Length (Decimal Inch) | 2.2200 |
| Head Length (mm) | 56.39 |
| Tool Application | Facing; Pocketing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Ramping End Mill; Rougher |
| Rake | Negative |
| Complete Insert Compatibility | WNxU0606.. |
| Insert Compatibility | WNxU0606.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 1WJ1F-1202281R01 |
| Usable Length (mm) | 56.390 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 2.2200 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
