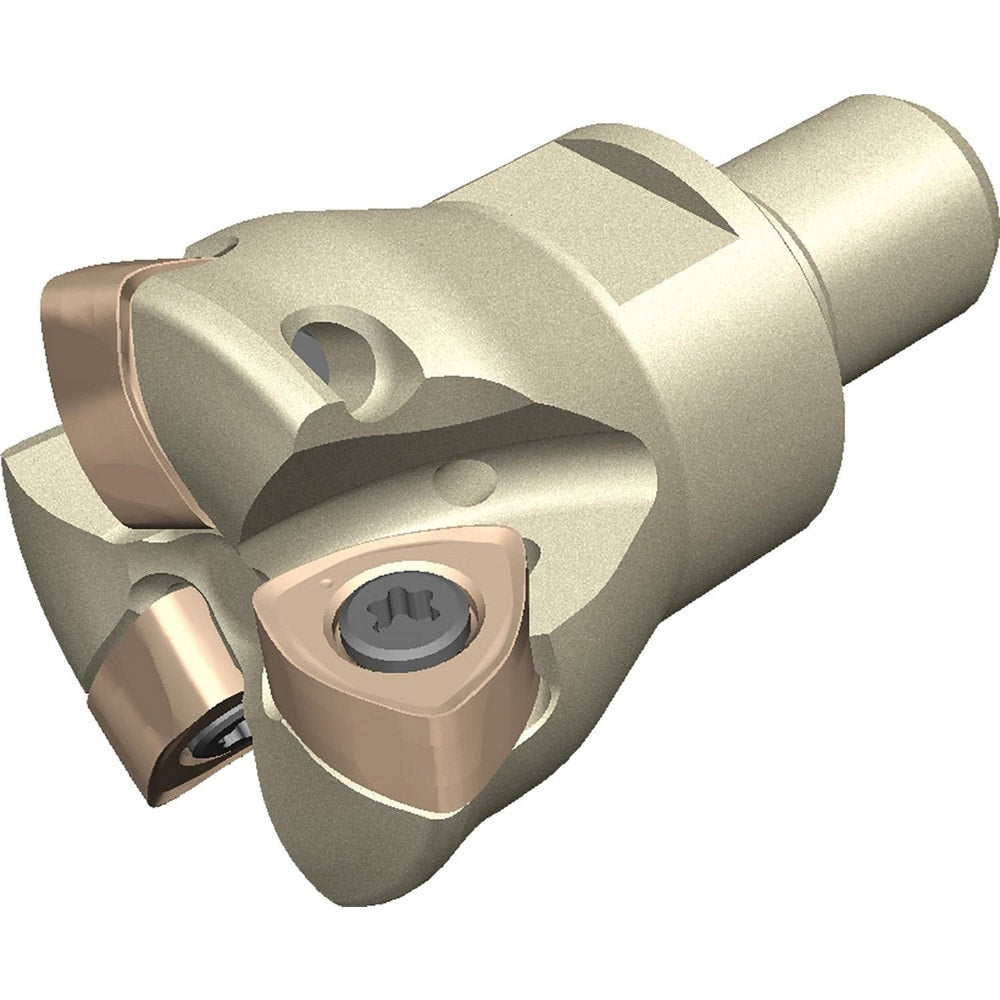

Brand: Sumitomo / Part #: 2900W83
Item #: 99568370
Brand: Sumitomo
Model #: 2900W83
Product Specifications
| Minimum Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Inch) | 1-1/2 |
| Maximum Depth of Cut (mm) | 3.00 |
| Toolholder Style | DMSW |
| Shank Type | Modular Connection |
| Maximum Ramping Angle | 0.8 |
| Compatible Insert Style | WNMU |
| Compatible Insert Size Code | 08 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 2.4803 |
| Series | DMSW |
| Modular Connection Size | M16 |
| Tool Performance | High Performance |
| End Mill Type | High Feed |
| Complete Insert Compatibility | WNMU08 |
| Manufacturers Catalog Number | DMSW31500M16Z3 |
| Number Of Flutes | 3 |
| End Mill Material | Carbide |
| Coolant Through | Yes |
