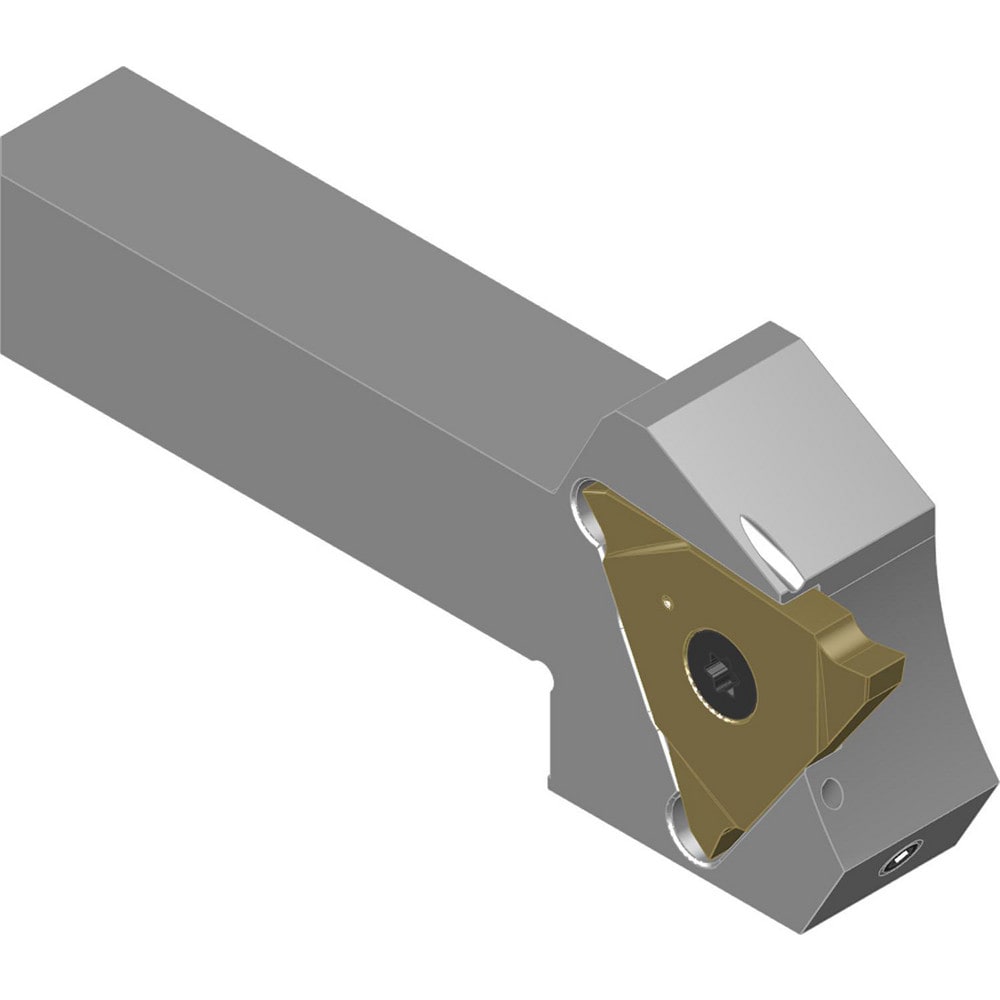

Brand: Arno / Part #: 116034
Item #: 02013746
Brand: Arno
Model #: 116034
Product Specifications
| Internal or External | External |
| Toolholder Type | External Grooving |
| Insert Seat Size | 14.00 |
| Hand of Holder | Left Hand |
| Cutting Direction | Neutral |
| Maximum Depth of Cut (mm) | 6.50 |
| Minimum Groove Width (mm) | 2.50 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | HTE 3 Edge Grooving |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | TE14H? |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Series | HTE Grooving for AFC |
| Shank Length (mm) | 45.000 |
| Overall Length (mm) | 70.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving |
| Head Length (mm) | 25.00 |
| Maximum Groove Outside Diameter (mm) | 44.00 |
| Toolholder Material | Alloy Steel |
| Insert Hand | Left Hand |
| Coolant Through | Yes |
