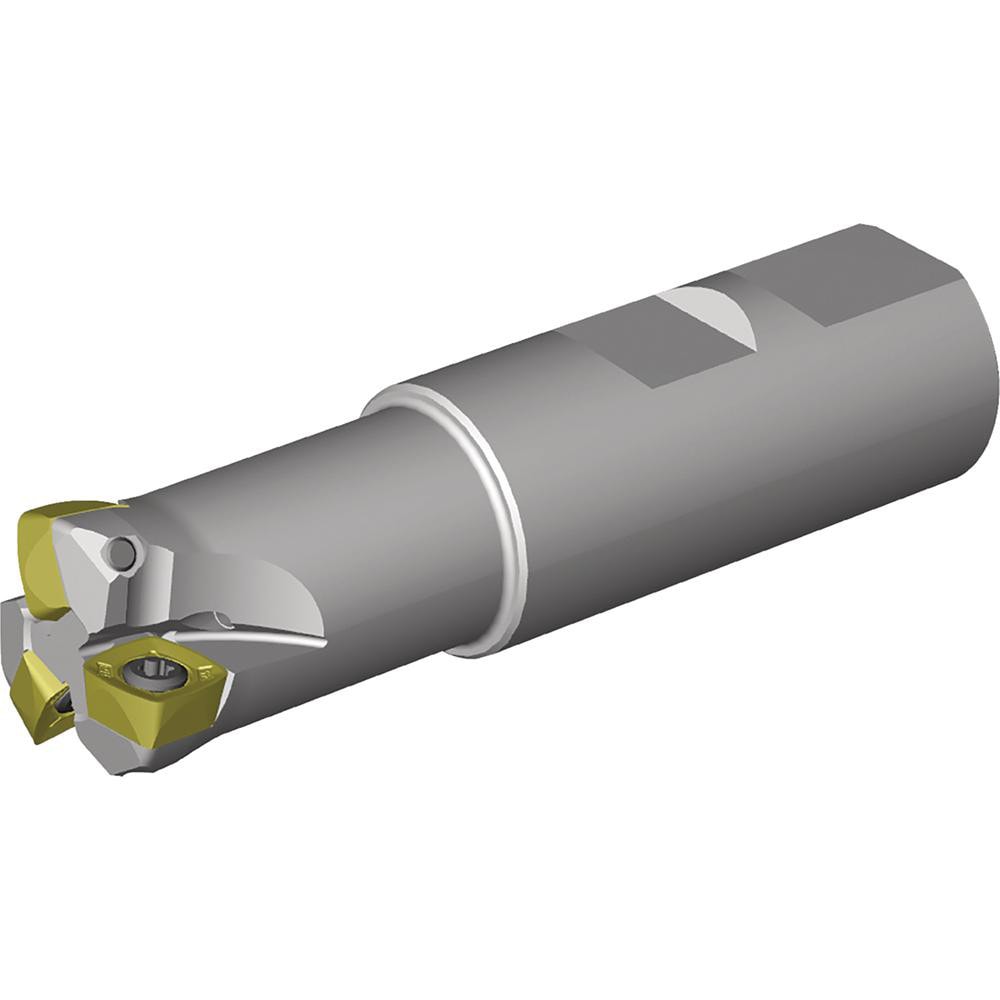

Brand: Widia / Part #: 6597757
Item #: 83167155
Brand: Widia
Model #: 6597757
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.7106 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Toolholder Style | VXF |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 1.00 |
| Maximum Ramping Angle | 1.50 |
| Compatible Insert Style | XDPT |
| Compatible Insert Size Code | 090412 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 3.8600 |
| Overall Length (mm) | 3.86 |
| Series | VXF-09 |
| Flute Type | Straight |
| Maximum RPM | 40500 |
| Head Length (Decimal Inch) | 1.5748 |
| Functional Length (Decimal Inch) | 3.8560 |
| Projection (Decimal Inch) | 3.8560 |
| Tool Application | Plunging; Milling; Ramping |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
