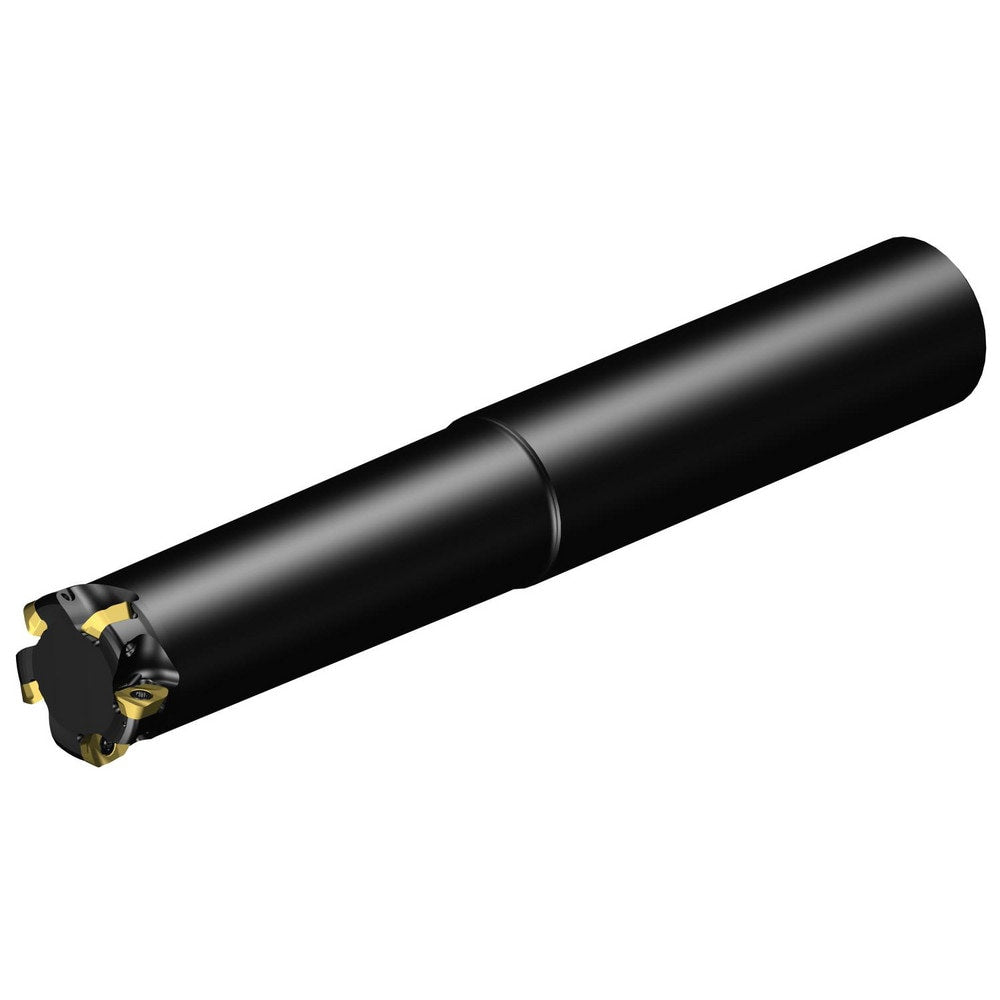

Brand: Sandvik Coromant / Part #: 8352783
Item #: 67615948
Brand: Sandvik Coromant
Model #: 8352783
Product Specifications
| Cutting Diameter (mm) | 23.32 |
| Cutting Diameter (Decimal Inch) | 0.9181 |
| Maximum Depth of Cut (Decimal Inch) | 0.1654 |
| Maximum Depth of Cut (mm) | 4.20 |
| Shank Diameter (mm) | 31.7500 |
| Compatible Insert Size Code | 0603 |
| Maximum Ramping Angle | 2.4 |
| Cutter Style | MH20-AR..Oxx |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Series | CoroMill MH20 |
| Maximum RPM | 18500.000 |
| Tool Application | Face Milling |
| Tool Performance | High Performance |
| Complete Insert Compatibility | CoroMill MH20 -0603 (MH20-060320) |
| Manufacturers Catalog Number | MH20-AR032O32-06H |
| Shank Diameter (Decimal Inch) | 1.25 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
