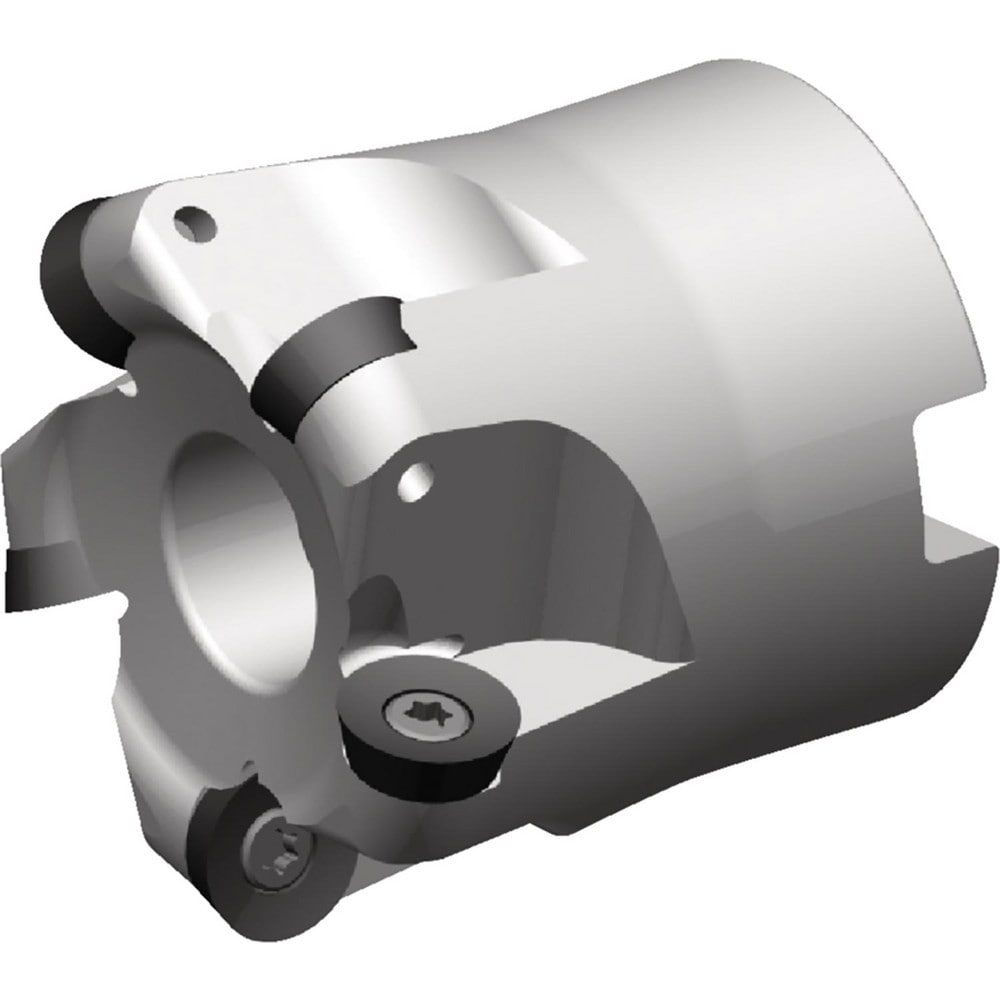

Brand: Widia / Part #: 3930976
Item #: 97195911
Brand: Widia
Model #: 3930976
Product Specifications
| Minimum Cutting Diameter (mm) | 54.00 |
| Maximum Cutting Diameter (mm) | 66.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Compatible Insert Size Code | RD.X12T3.. |
| Maximum Ramping Angle | 4.50 degree |
| Cutter Style | M170 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M170 |
| Hub Diameter (Decimal Inch) | 2.3622 |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Maximum RPM | 6030 |
| Tool Application | Profiling; Pocketing; Milling; Slotting; Ramping; Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Super-Alloys & Titanium; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
