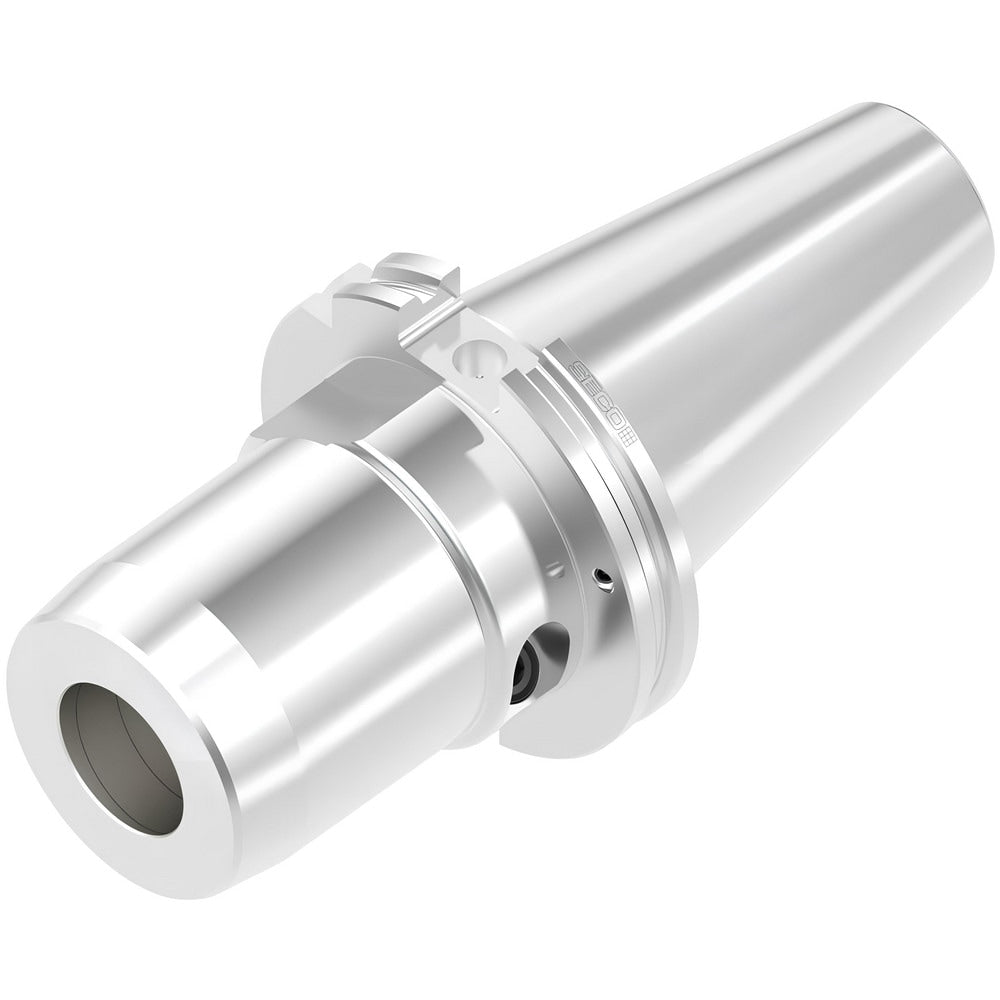

Brand: Seco / Part #: 10137276
Item #: 98632482
Brand: Seco
Model #: 10137276
Product Specifications
| Shank Type | Taper |
| Connection Size | DIN69871-40 |
| Taper Size | DIN40 ADB |
| Chuck Hole Diameter | 8.00 |
| Nose Diameter (Mm) ( - 2 Decimals) | 28.00 |
| Projection (mm) | 61.450 |
| Clamping Depth (mm) | 38.50 |
| Balanced To Rpm | 25 |
| Through Coolant | Yes |
| Overall Length (mm) | 148.7500 |
| Series | HC08 |
| Material | Steel |
| Cutting Direction | Neutral |
| Number Of Pieces | 1.000 |
| C-Projection Gage Line to Nose End (Decimal Inch) | 3.17 |
| Hole Diameter (Mm) ( - 0 Decimals) | 8.0000 |
| Body Diameter (Decimal Inch) | 1.9390 |
