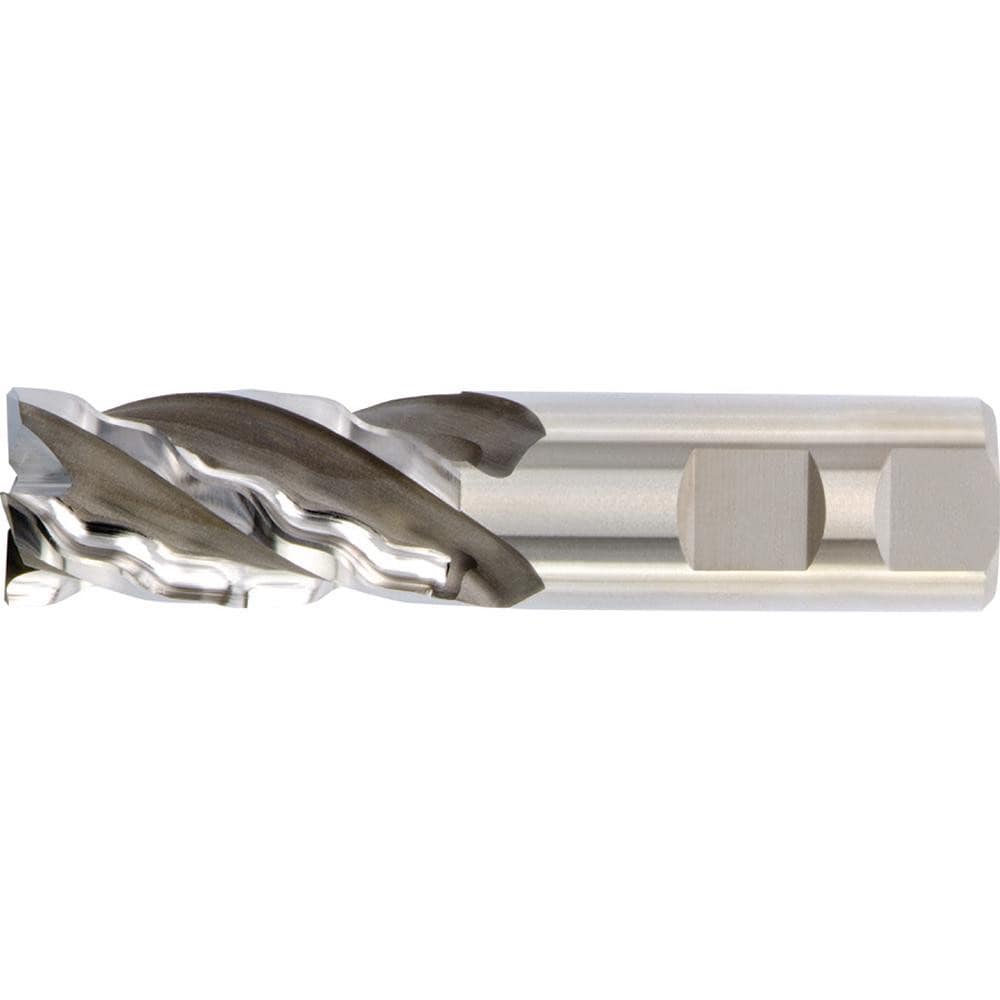

Brand: Widia / Part #: 3871840
Item #: 97933279
Brand: Widia
Model #: 3871840
Product Specifications
| Mill Diameter (mm) | 50.00 |
| Chamfer Width (mm) | 1.000 |
| Coating/Finish | Uncoated |
| End Mill Material | Cobalt |
| Number Of Flutes | 6 |
| Single Or Double End | Single |
| Overall Length (mm) | 140.0000 |
| Length of Cut (mm) | 40.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Helix Angle | 35 |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Short |
| Flute Type | Helical |
| Extended Reach | Yes |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 50.0000 |
| Neck Diameter (mm) | 47.000 |
| Reach Length (mm) | 60.00 |
| Minimum Helix Angle | 35 |
| Primary Workpiece Material | Stainless Steel; High Temperature Alloy |
| Primary Workpiece Material Code | S; M |
| Series | 664W |
| Coating Classification | Uncoated |
| Chamfer Length (mm) | 1.00 |
| Helix Style | Medium |
