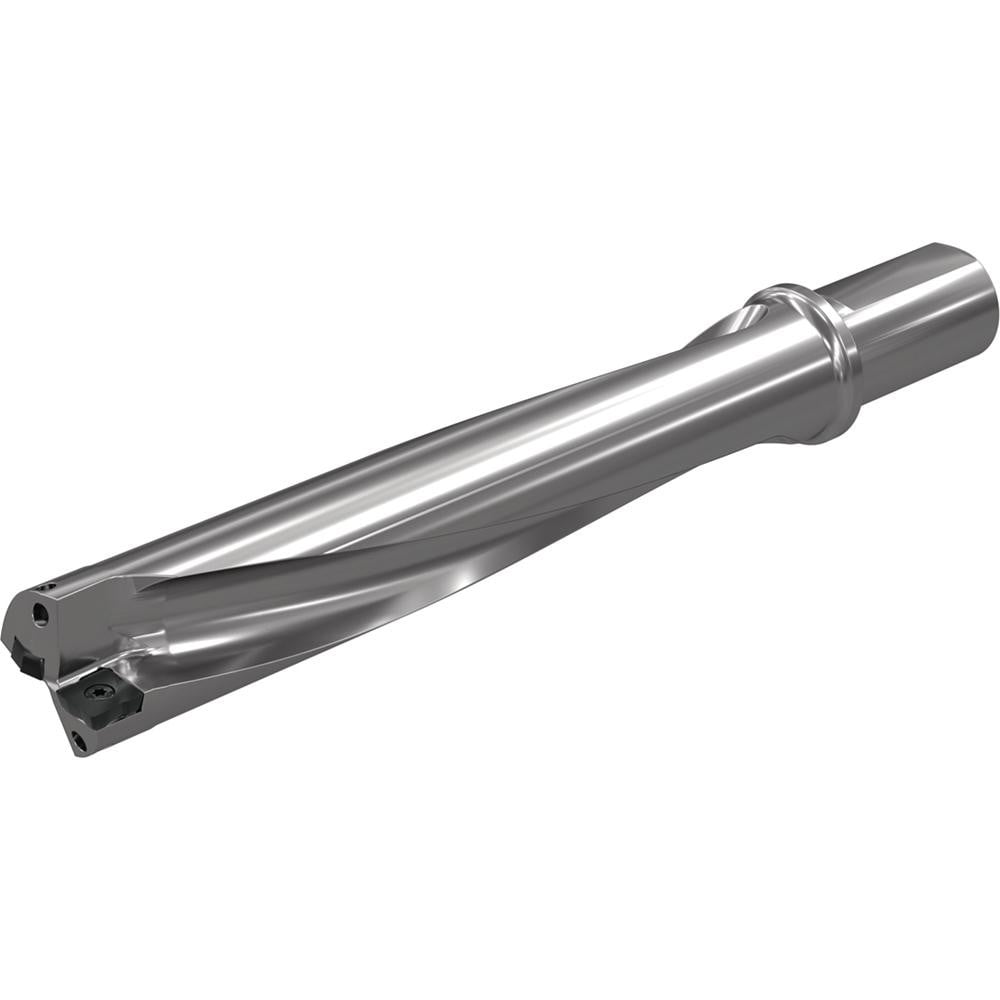

Brand: Widia / Part #: 5538098

Brand: Widia / Part #: 5538098


Item #: 97244693
Brand: Widia
Model #: 5538098

Product Specifications

Maximum Drill Depth 6.9240 in
Drill Depth by Diameter Ratio 5xD
Maximum Depth of Cut (Decimal Inch) 6.9240
Shank Type Weldon Flat
Shank Diameter (Inch) 1-1/4
Shank Diameter (Decimal Inch) 1.2500
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 8.3090
Toolholder Style TCF
Nose Diameter (Decimal Inch - 4 Decimals) 1.3750
Overall Length (Decimal Inch) 10.7199
Overall Length 10.72
Through Coolant Yes
Series Top Cut 4
Flute Length (Decimal Inch) 8.1610
Shank Length (Decimal Inch) 2.3622
Gage Length (Decimal Inch) 8.3577
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Coolant Hole Thread Type NPT
Coolant Hole Thread Size (Inch) 1/4-18
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (Decimal Inch) 1.3750
Number Of Flutes 2
Projection (Decimal Inch) 8.3577
Coolant Through Yes
$496.15
