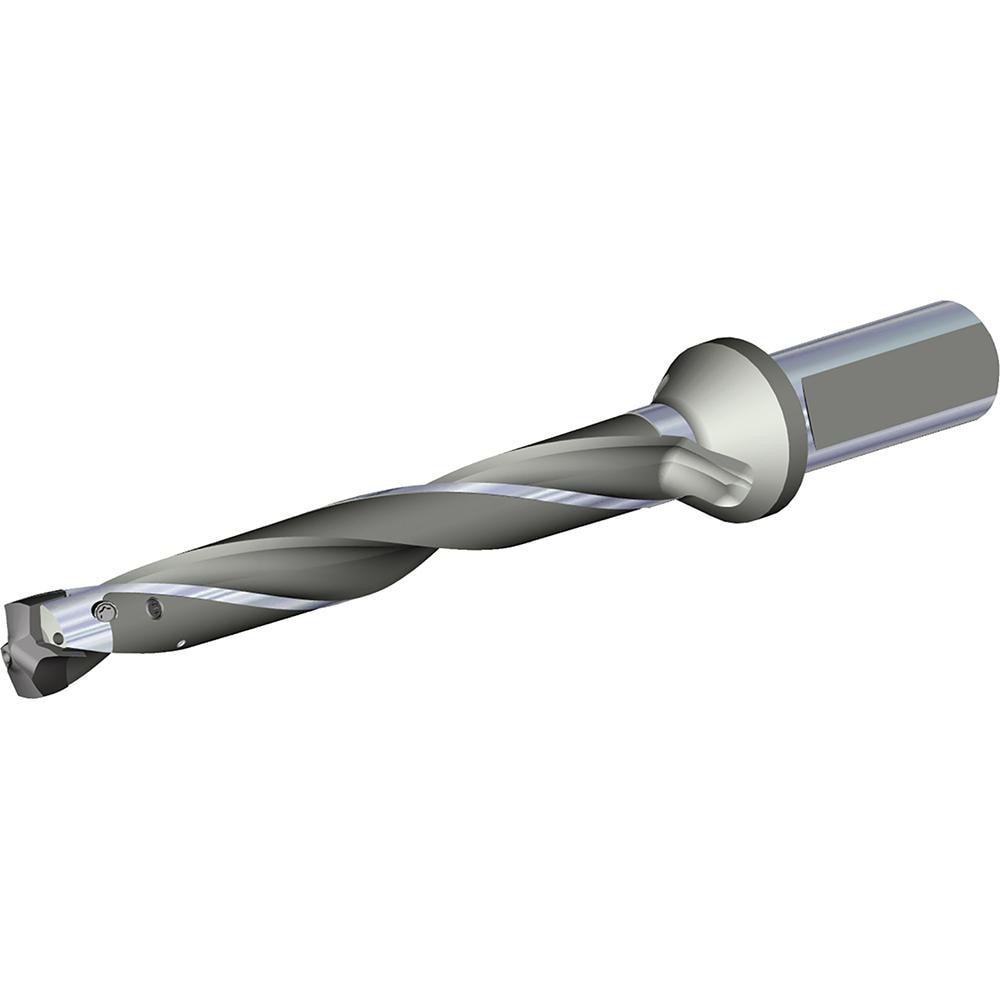

Brand: Widia / Part #: 6572262

Brand: Widia / Part #: 6572262


Item #: 90231135
Brand: Widia
Model #: 6572262

Product Specifications

Minimum Drill Diameter (Decimal Inch) 1.2205
Maximum Drill Diameter (Decimal Inch) 1.2598
Drill Depth by Diameter Ratio 8xD
Maximum Drill Depth (Fractional Inch) 10-5/64
Maximum Drill Depth (Decimal Inch) 10.0787
Shank Type Flatted
Insert Style TDMX
Shank Diameter (Inch) 1-1/4
Shank Diameter (Decimal Inch) 1.2500
Insert Seat Size P
Tool Material Steel
Compatible Insert Style TDMX
Compatible Insert Size Code P
Overall Length (Decimal Inch) 14.5276
Series TDMX
Toolholder Style TDMX
Flute Length (Decimal Inch) 10.0787
Body Length (Decimal Inch) 11.3819
Shank Length (Decimal Inch) 2.3622
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Coolant Hole Diameter (Decimal Inch) 0.1969
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$788.45
