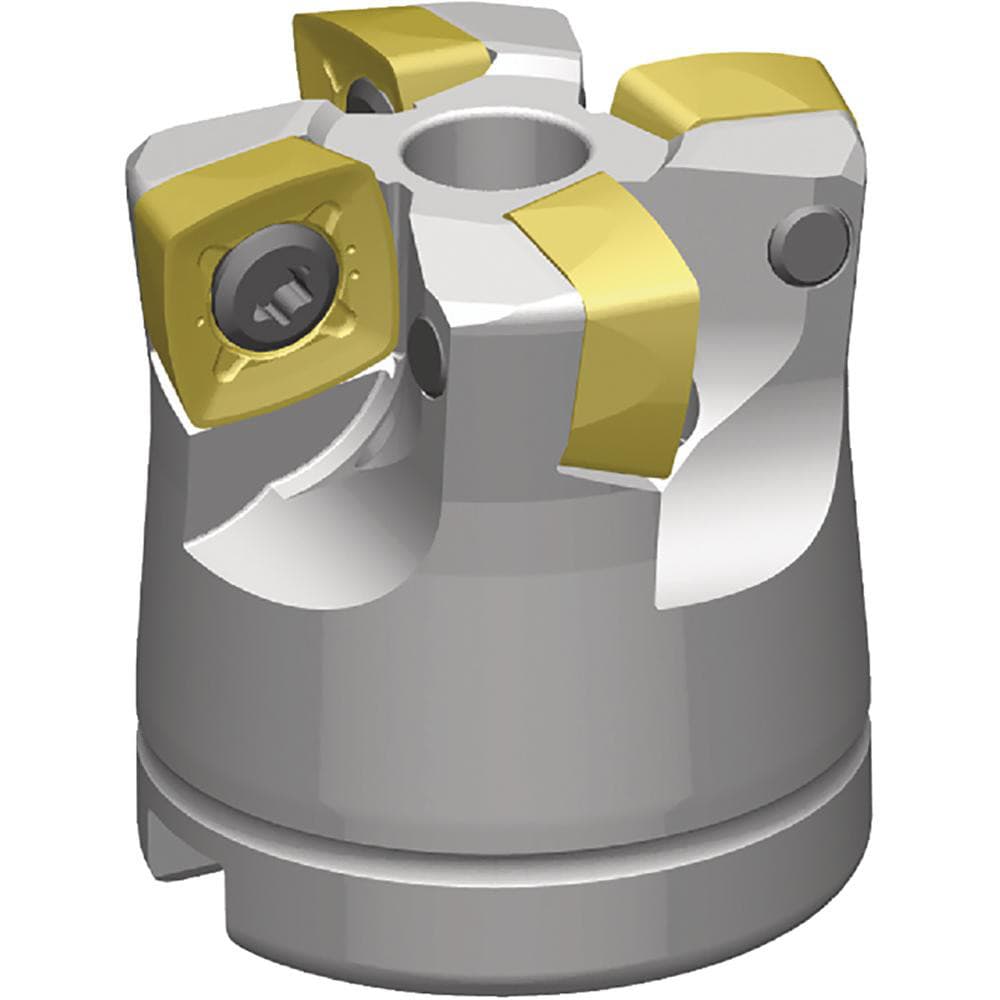

Brand: Widia / Part #: 6596765
Item #: 95480570
Brand: Widia
Model #: 6596765
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.2841 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | XD..120512 |
| Maximum Ramping Angle | 0.90 degree |
| Cutter Style | VXF-12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | VXF-12 |
| Maximum Body Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 1.5748 |
| Maximum RPM | 22500 |
| Tool Application | Plunging; Ramping; Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Titanium; Steel; Super-Alloy |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Coolant Through | Yes |
