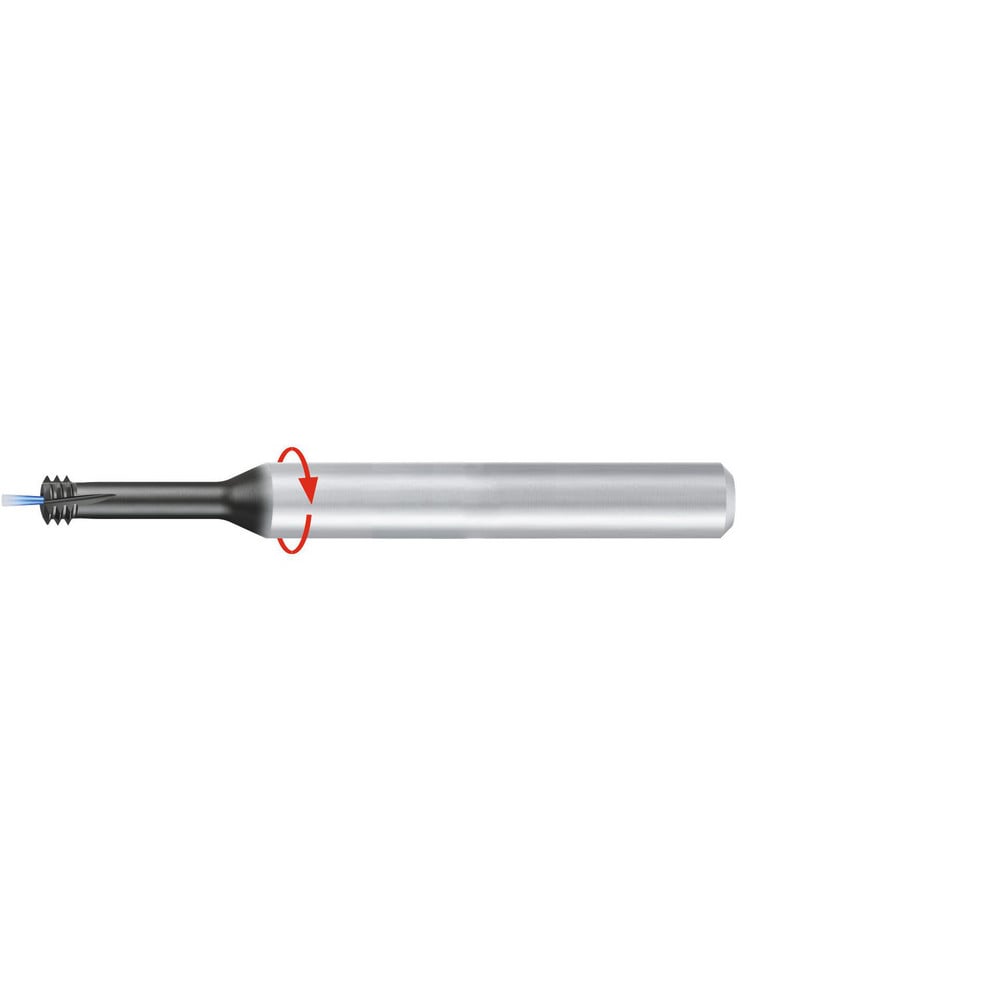

Brand: Emuge / Part #: GF26A729.5715
Item #: 93327815
Brand: Emuge
Model #: GF26A729.5715
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 3/8-24 |
| Thread Depth (mm) | 20.60 |
| Thread Depth | 1.0240 |
| Thread Type | Left Hand |
| Shank Diameter (mm) | 10.0000 |
| Cutting Diameter (mm) | 8.20 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.3228 |
| Length of Cut (mm) | 4.6000 |
| Minimum Nominal Diameter (Decimal Inch) | 0.3292 |
| Minimum Nominal Diameter (Inch) | 3/8 |
| Minimum Nominal Diameter (mm) | 0.00 |
| Shank Length (mm) | 36.000 |
| Overall Length (mm) | 68.0000 |
| Thread Standard | UNF |
| Flute Direction | Left Hand |
| Material Grade | Ultra Fine Grain |
| Series | GF26A |
| Number Of Flutes | 7 |
| Coating/Finish | TiALN |
| Coolant Through | Yes |
| Thread Direction | Left Hand/Right Hand |
| Teeth Per Inch | 24 |
