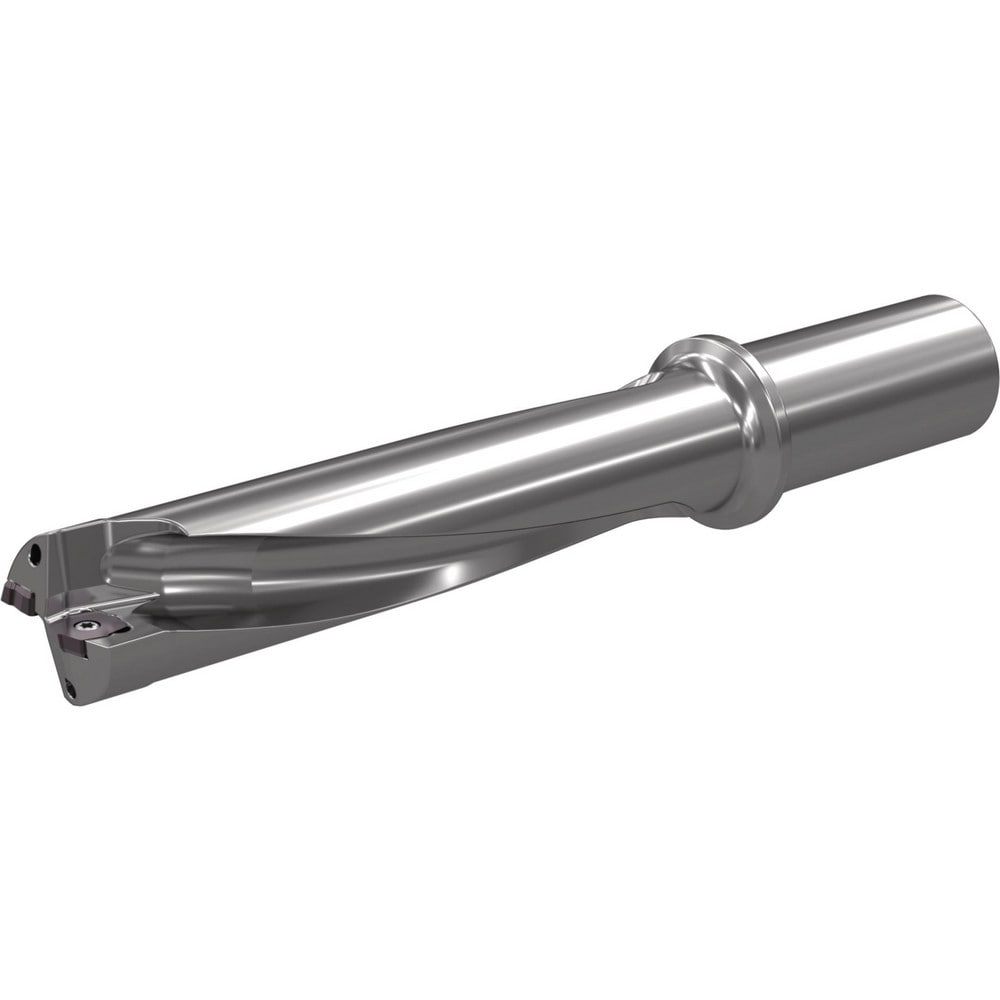

Brand: Widia / Part #: 5578625

Brand: Widia / Part #: 5578625


Item #: 90087453
Brand: Widia
Model #: 5578625

Product Specifications

Maximum Drill Depth 6.6730 in
Drill Depth by Diameter Ratio 4xD
Maximum Depth of Cut (mm) 169.50
Shank Type Weldon Flat
Shank Diameter (mm) 40.0000
Shank Diameter (Decimal Inch) 1.5748
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 212.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 42.00
Overall Length (mm) 283.5000
Overall Length 283.50
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 207.30
Shank Length (mm) 70.000
Gage Length (mm) 213.50
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (mm) 42.00
Projection (mm) 213.500
Number Of Flutes 2
Coolant Through Yes
$500.69
