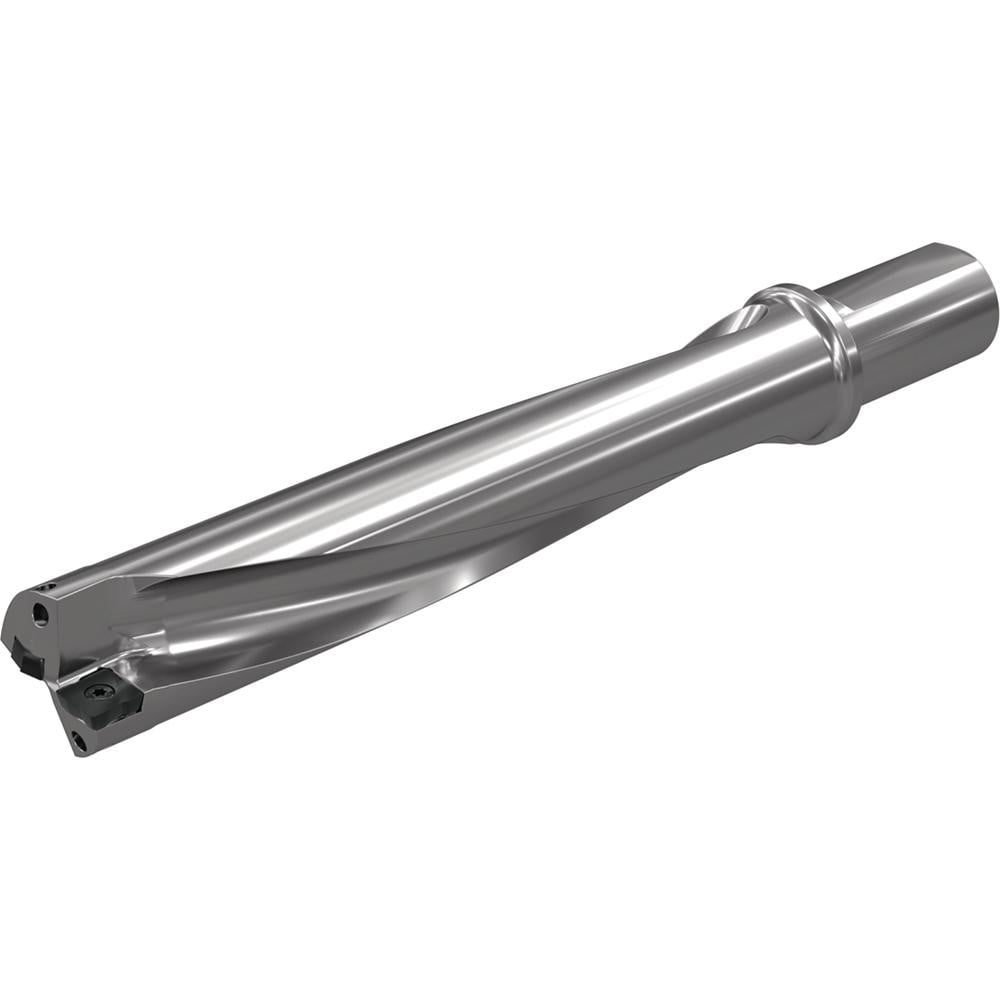

Brand: Widia / Part #: 5578798

Brand: Widia / Part #: 5578798


Item #: 90983040
Brand: Widia
Model #: 5578798

Product Specifications

Maximum Drill Depth 7.5680 in
Drill Depth by Diameter Ratio 4xD
Maximum Depth of Cut (Decimal Inch) 7.5680
Shank Type Weldon Flat
Shank Diameter (Inch) 1-1/2
Shank Diameter (Decimal Inch) 1.5000
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 9.2360
Toolholder Style TCF
Nose Diameter (Decimal Inch - 4 Decimals) 1.8750
Overall Length (Decimal Inch) 12.0595
Overall Length 12.06
Through Coolant Yes
Series Top Cut 4
Flute Length (Decimal Inch) 8.9490
Shank Length (Decimal Inch) 2.7559
Gage Length (Decimal Inch) 9.3036
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Coolant Hole Thread Type NPT
Coolant Hole Thread Size (Inch) 1/4-18
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (Decimal Inch) 1.8750
Number Of Flutes 2
Projection (Decimal Inch) 9.3036
Coolant Through Yes
$500.69
