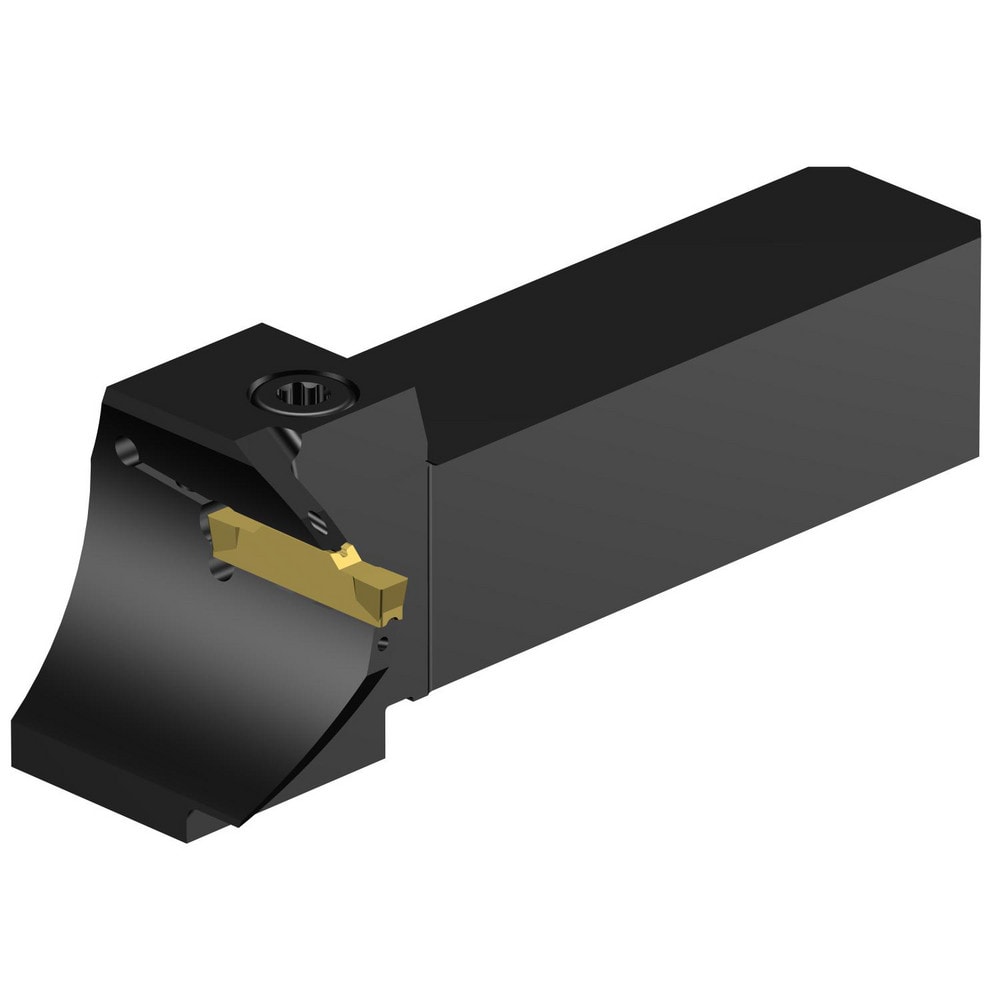

Brand: Sandvik Coromant / Part #: 8289922
Item #: 67620492
Brand: Sandvik Coromant
Model #: 8289922
Product Specifications
| Toolholder Type | Face Grooving |
| Insert Seat Size | H |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Minimum Groove Width (mm) | 52.00 |
| Maximum Groove Width (mm) | 72.00 |
| Toolholder Style | C2A-QS..RG..B..CB |
| Maximum Groove Width (Decimal Inch) | 2.8347 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | H2 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | CoroCut? 2 |
| Overall Length (mm) | 107.0000 |
| Overall Length (Decimal Inch) | 4.2126 |
| Cutting Tool Application | Face Grooving |
| Back of Bar to Cutting Edge (mm) | 4.21 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.2126 |
| Center to Cutting Edge (Decimal Inch) | 1.6535 |
| Center to Cutting Edge (mm) | 42.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.0472 |
| Head Height (Decimal Inch) | 0.9843 |
| Head Height (mm) | 25.000 |
| Head Length (Decimal Inch) | 1.9096 |
| Head Length (mm) | 48.50 |
| Maximum Bore Depth (Decimal Inch) | 1.9095 |
| Manufacturers Catalog Number | C2A-QS25-RGH15B-52CB |
| Toolholder Material | Steel |
| Complete Insert Compatibility | C2I-H2-0400- |
| Coolant Through | Yes |
| Maximum Bore Depth (mm) | 48.50 |
