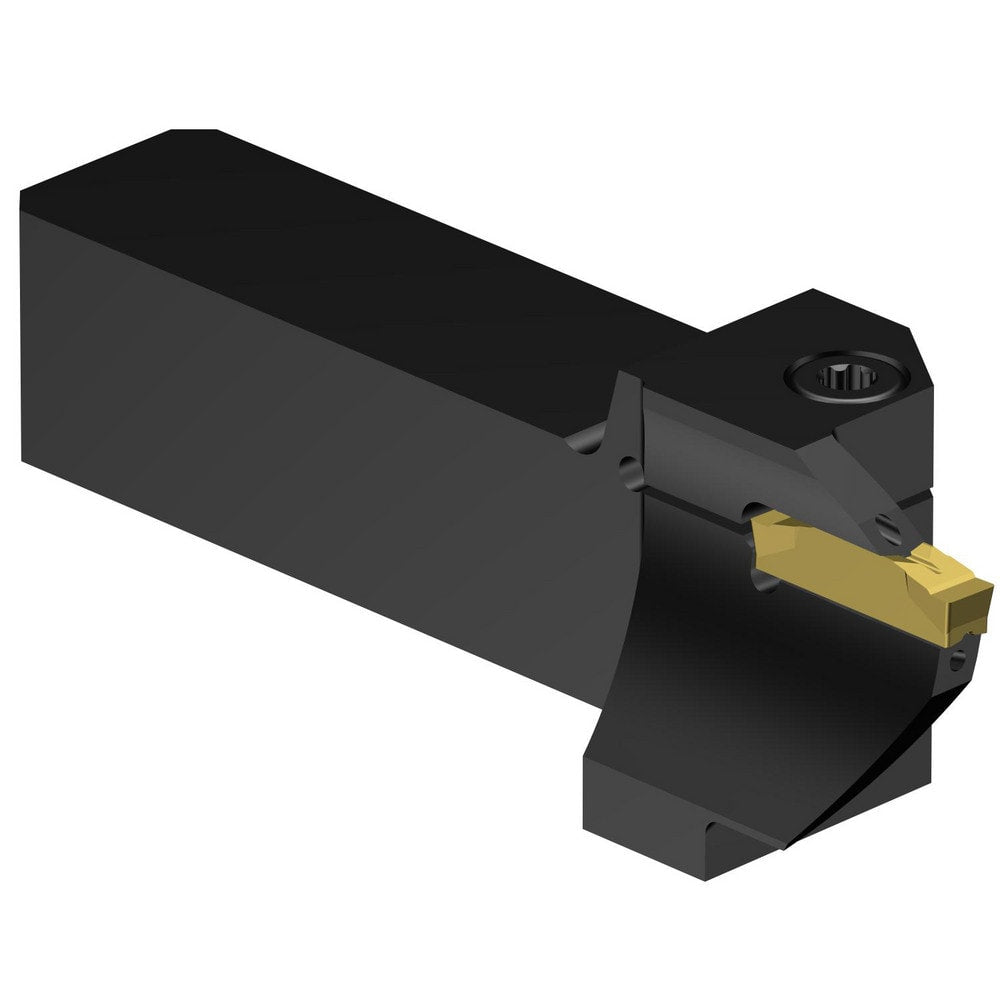

Brand: Sandvik Coromant / Part #: 8289895
Item #: 67620062
Brand: Sandvik Coromant
Model #: 8289895
Product Specifications
| Toolholder Type | Face Grooving |
| Insert Seat Size | K |
| Hand of Holder | Left Hand |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7090 |
| Maximum Depth of Cut (mm) | 18.01 |
| Minimum Groove Width (mm) | 40.01 |
| Maximum Groove Width (mm) | 70.00 |
| Toolholder Style | C2A-QSA..LF..B..CB |
| Maximum Groove Width (Decimal Inch) | 2.7560 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | K2 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | CoroCut? 2 |
| Overall Length (mm) | 122.1200 |
| Overall Length (Decimal Inch) | 4.8080 |
| Cutting Tool Application | Face Grooving |
| Back of Bar to Cutting Edge (mm) | 4.81 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.8080 |
| Center to Cutting Edge (Decimal Inch) | 1.0200 |
| Center to Cutting Edge (mm) | 25.91 |
| Minimum Hole Diameter (Decimal Inch) | 1.5750 |
| Head Height (Decimal Inch) | 1 |
| Head Height (mm) | 25.400 |
| Head Length (Decimal Inch) | 2.5046 |
| Head Length (mm) | 63.62 |
| Maximum Bore Depth (Decimal Inch) | 2.5046 |
| Manufacturers Catalog Number | C2A-QSA16-LFK18B-040CB |
| Toolholder Material | Steel |
| Complete Insert Compatibility | C2I-K2-0600- |
| Coolant Through | Yes |
| Maximum Bore Depth (mm) | 63.62 |
