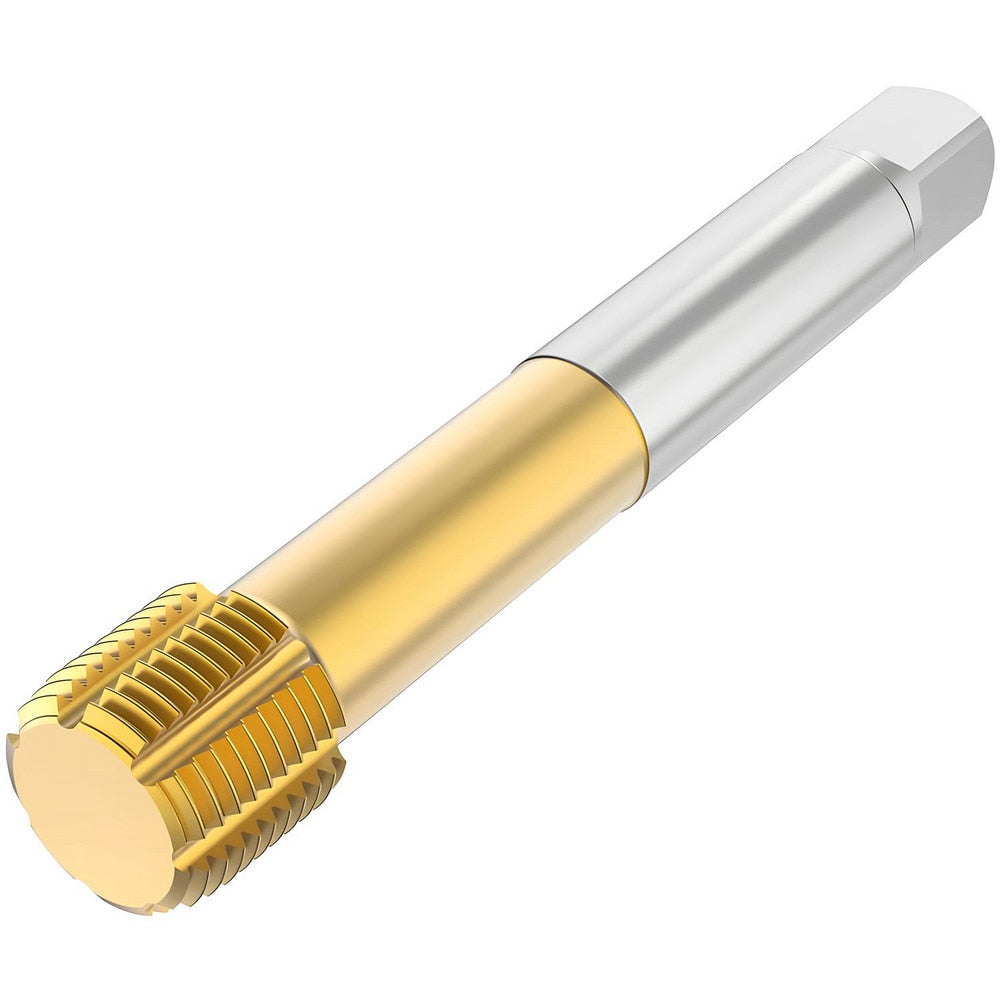

Brand: Seco / Part #: 10139257
Item #: 99562571
Brand: Seco
Model #: 10139257
Product Specifications
| Thread Size (Inch) | G 3/4-14 |
| Overall Length (mm) | 140.0000 |
| Chamfer | Modified Bottoming |
| Coating/Finish | TN |
| Thread Pitch (mm) | 1.81 |
| Thread Standard | G |
| Thread Direction | Right Hand |
| Material | HSS-E |
| Thread Length (mm) | 22.00 |
| Thread Depth (mm) | 22.00 |
| Thread Depth | 22.0000 |
| Shank Diameter (mm) | 20.0000 |
| Neck Length | 51.00 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel |
| Application | Industrial |
| Series | T33 |
| Tap Type | Thread Forming |
| Tapping Depth (mm) | 73.00 |
| Shank Length (mm) | 67.000 |
| Threads per Inch | 14 |
| Class Of Fit | NORMAL-X |
| Coolant Through | No |
