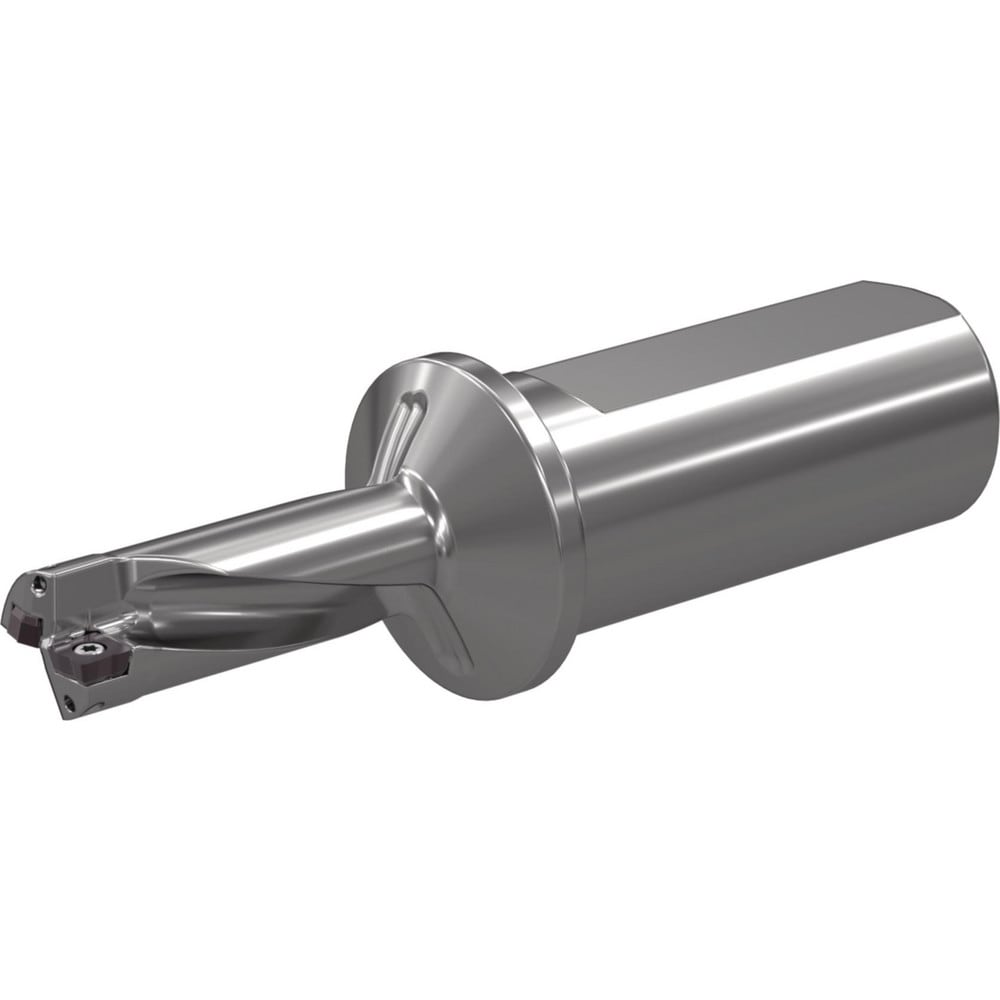

Brand: Widia / Part #: 5538613

Brand: Widia / Part #: 5538613


Item #: 97073936
Brand: Widia
Model #: 5538613

Product Specifications

Maximum Drill Depth 4.5690 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (mm) 116.06
Shank Type Weldon Flat
Shank Diameter (mm) 40.0000
Shank Diameter (Decimal Inch) 1.5748
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 160.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 57.00
Overall Length (mm) 232.0600
Overall Length 232.06
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 156.00
Shank Length (mm) 70.000
Gage Length (mm) 162.06
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Helical Flute
Maximum Cutting Diameter (mm) 57.00
Projection (mm) 162.060
Number Of Flutes 2
Coolant Through Yes
$557.34
