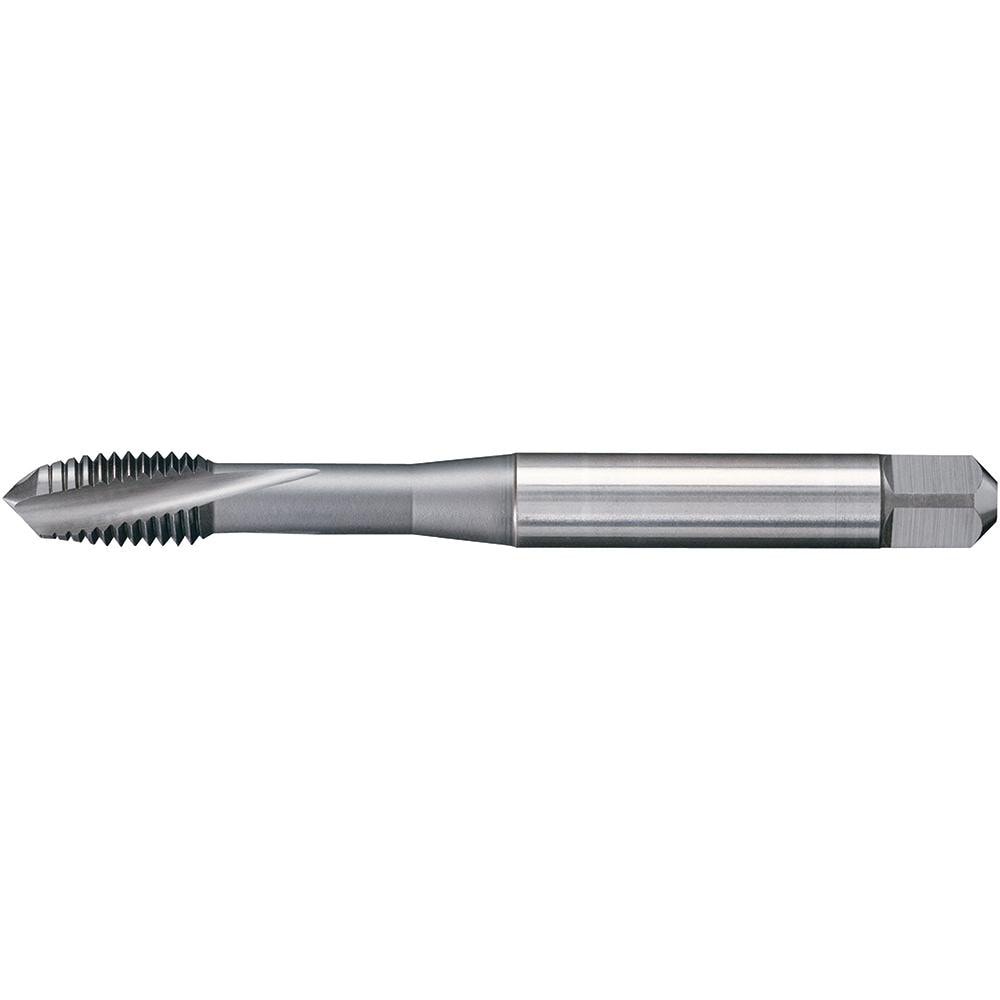

Brand: Widia / Part #: 3955048
Item #: 97423958
Brand: Widia
Model #: 3955048
Product Specifications
| Thread Size (mm) | M4x0.7 |
| Chamfer | Plug |
| Thread Limit | D5 |
| Class Of Fit | 6HX |
| Number Of Flutes | 2 |
| Material | Powdered Metal |
| Threads per Inch | 36 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | C; CrC |
| Thread Depth (mm) | 21.00 |
| Coolant Through | No |
| Thread Length (mm) | 10.00 |
| Overall Length (mm) | 63.0000 |
| Thread Pitch (mm) | 0.70 |
| Thread Standard | Metric |
| Material Grade | WS34MG |
| Shank Diameter (mm) | 4.5000 |
| Square Length (mm) | 6.00 |
| Square Size (mm) | 3.40 |
| Material Application | Stainless Steel |
| Series | GT20 |
