Brand: Widia / Part #: 5697789
Item #: 99553570
Brand: Widia
Model #: 5697789
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 33. |
| Toolholder Style | DWLNR |
| Rake | Negative |
| Rake Angle | -5 (Axial);-5 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 95.000 |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Width (Inch) | 3/4 |
| Insert Compatibility | WN..33. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Series | DWLN |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4-1/2 |

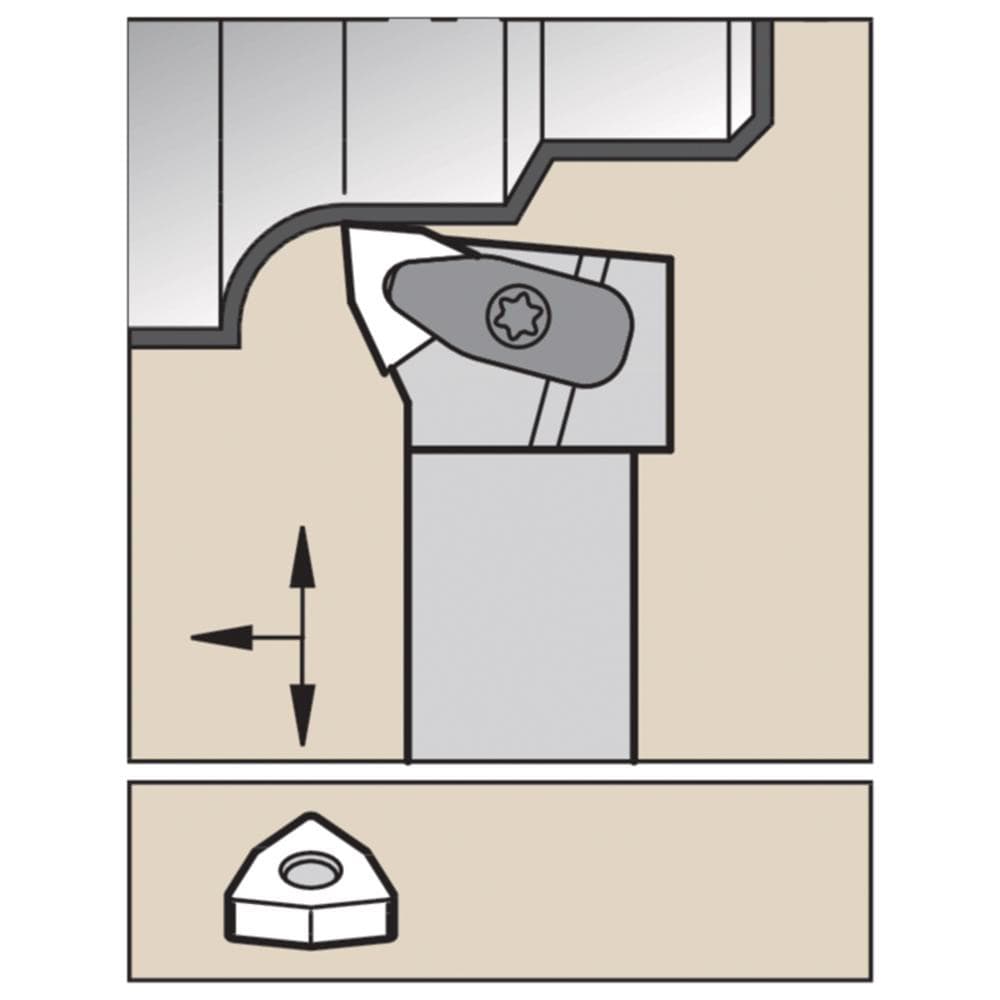

| Cutting Tool Application | Facing; Copying; Turning |
| Head Length (Decimal Inch) | 1.0000 |
| Back of Bar to Cutting Edge (Inch) | 1 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Width (Inch) | 3/8 |
| Insert Width (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
| ISO Number | DWLNR123BKC3 |
| Complete Insert Compatibility | WN.. |
| Coolant Through | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
