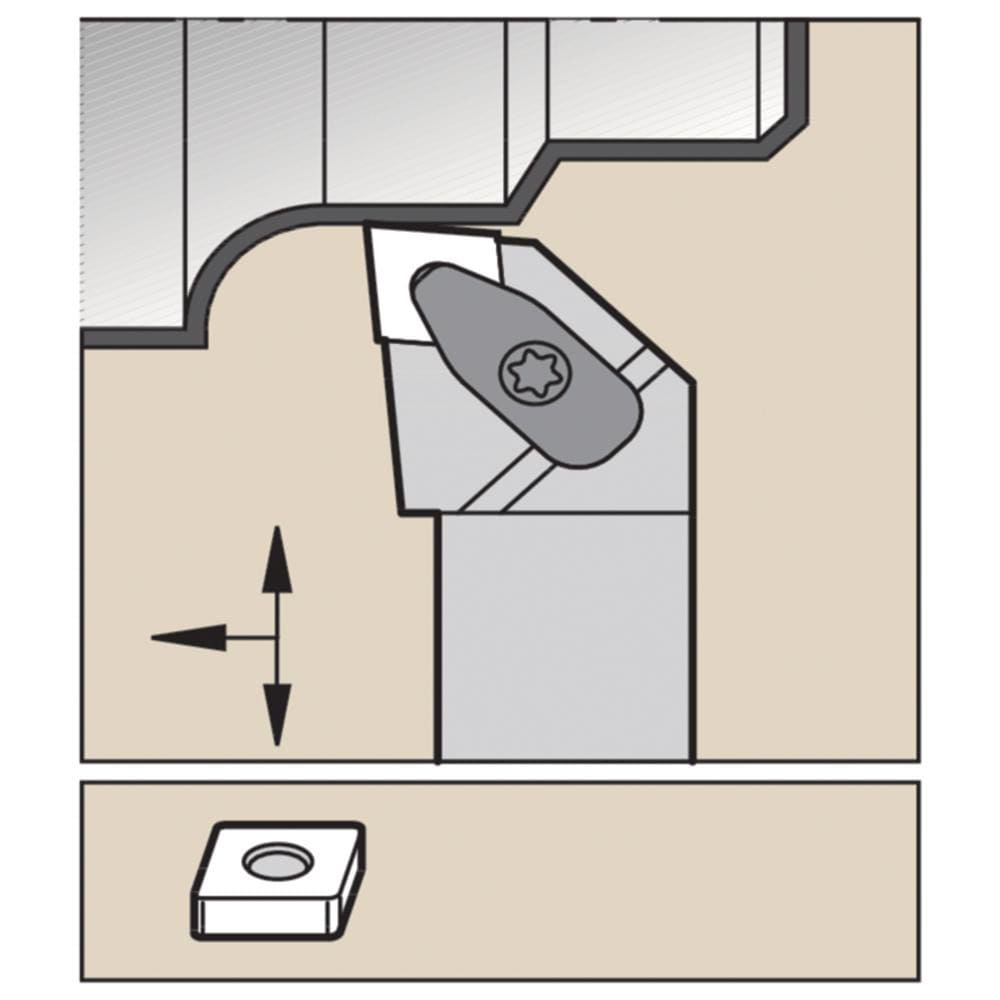

Brand: Widia / Part #: 5564310
Item #: 99312035
Brand: Widia
Model #: 5564310
Product Specifications
| Cutting Direction | Left Hand |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | 64. |
| Toolholder Style | DCLNL |
| Rake | Negative |
| Rake Angle | -5 (Axial);-5 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 95.000 |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Width (Inch) | 1 |
| Insert Compatibility | CN..64. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Series | DCLN |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Facing; Turning |
| Head Length (Decimal Inch) | 1.6250 |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Insert Width (Inch) | 3/4 |
| Insert Width (Decimal Inch) | 0.7500 |
| Toolholder Material | Steel |
| ISO Number | DCLNL166DKC4 |
| Complete Insert Compatibility | CN.. |
| Coolant Through | No |
| Insert Thickness (Decimal Inch) | 0.2500 |
