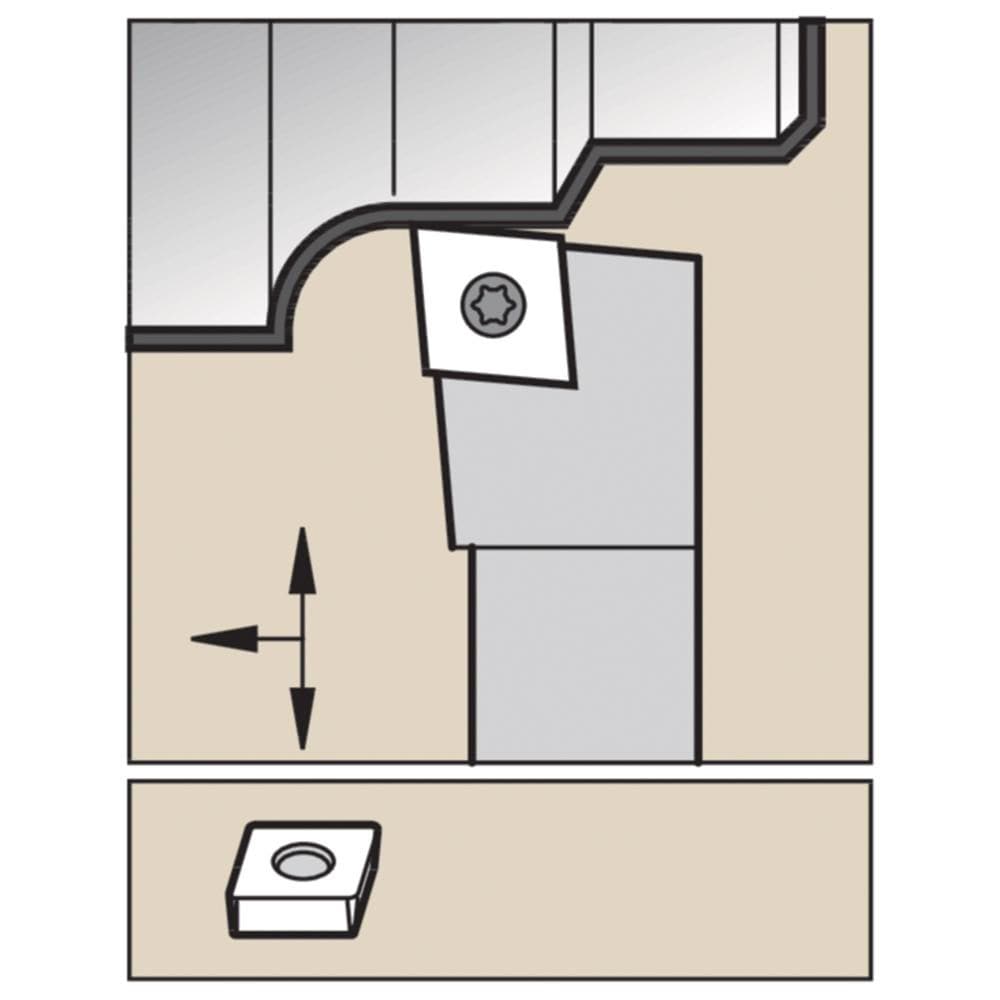

Brand: Widia / Part #: 3879416
Item #: 99407439
Brand: Widia
Model #: 3879416
Product Specifications
Cutting Direction | Right Hand |
Hand of Holder | Right Hand |
Compatible Insert Size Code | 09T3.. |
Toolholder Style | SCLCR |
Rake | Positive |
Rake Angle | 0 (Axial);0 (Radial) |
Multi-use Tool | Yes |
Lead Angle | 95.000 |
Insert Holding Method | Screw |
Insert Compatibility | CC..09T3.. |
Shank Width (mm) | 16.00 |
Shank Height (mm) | 16.00 |
Series | SCLC |
Overall Length (mm) | 100.0000 |
Cutting Tool Application | Facing; Copying; Turning |
Head Length (mm) | 15.75 |
Back of Bar to Cutting Edge (mm) | 20.00 |
Primary Workpiece Material | Universal |
Insert Width (mm) | 9.53 |
Toolholder Material | Steel |
ISO Number | SCLCR1616H09 |
Complete Insert Compatibility | CC.. |
Insert Thickness | 3.97 |
Coolant Through | No |
Insert Inscribed Circle (mm) | 9.53 |
