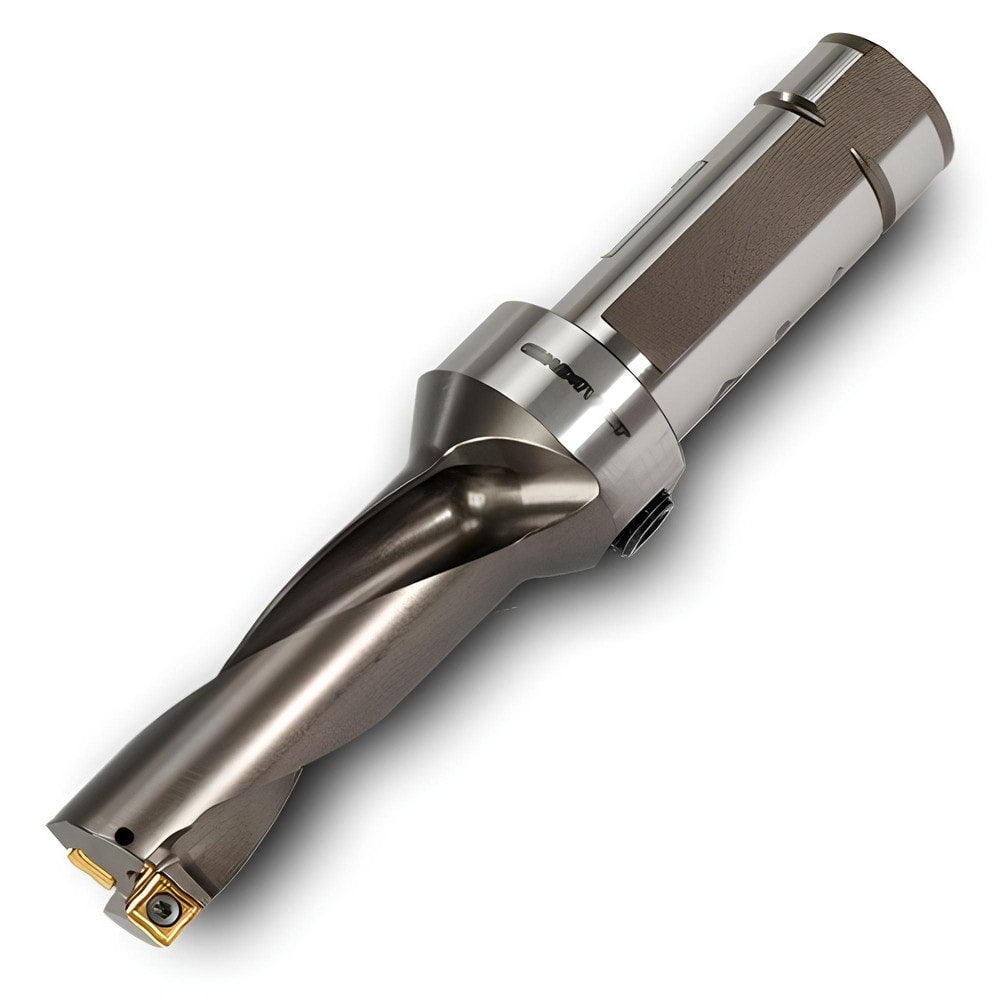

Brand: Ingersoll Cutting Tools / Part #: 6108632

Brand: Ingersoll Cutting Tools / Part #: 6108632


Item #: 44316560
Brand: Ingersoll Cutting Tools
Model #: 6108632

Product Specifications

Maximum Drill Depth 3.9400 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (Decimal Inch) 3.9400
Shank Type Combination
Shank Diameter (Inch) 1-1/2
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 5.5100
Toolholder Style QR05
Nose Diameter (Decimal Inch - 4 Decimals) 1.9690
Overall Length (Decimal Inch) 8.6600
Overall Length 8.66
Through Coolant Yes
Series QR
Flute Length (Decimal Inch) 3.9400
Shank Length (Decimal Inch) 3.1600
Primary Workpiece Material Universal
Primary Workpiece Material Code O
Flute Type Slow Spiral
Maximum Cutting Diameter (Decimal Inch) 1.9690
Number Of Flutes 2
Coolant Through Yes
