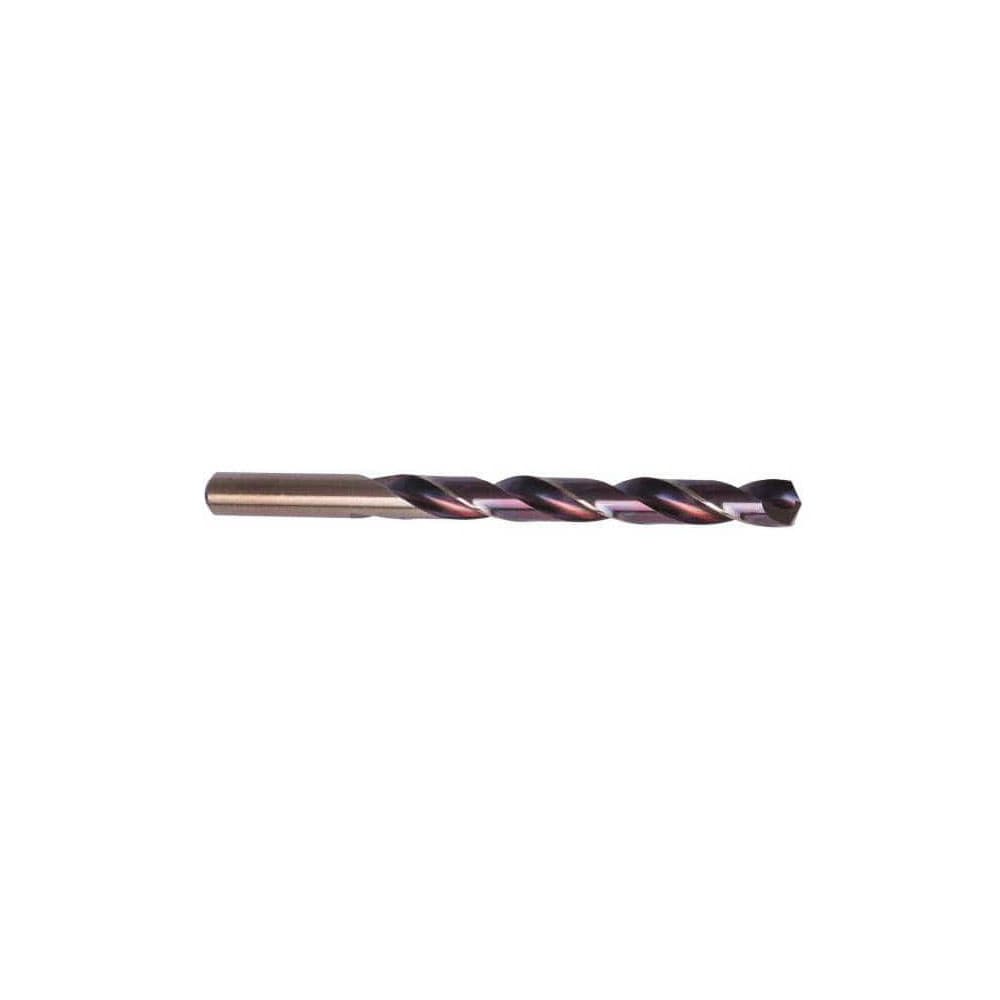

Brand: Precision Twist Drill / Part #: 5996370
Item #: 09760000
Brand: Precision Twist Drill
Model #: 5996370
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3161 |
| Drill Bit Size (Letter) | O |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Purple/Bronze |
| Drill Point Angle (Degrees) | 135 |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Length (Inch) | 3-3/16 |
| Shank Diameter (Decimal Inch) | 0.3161 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Flute Length (Decimal Inch) | 3.1875 |
| Series | HX15 |
| Tool Application | Self-Centering |
| Flute Length x Diamter Ratio | 4xD |
| Flute By Diameter Ratio | 4xD |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | High Performance |
| Standards | ANSI |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Material Grade | M2 |
| Specification Designation | ANSI |
