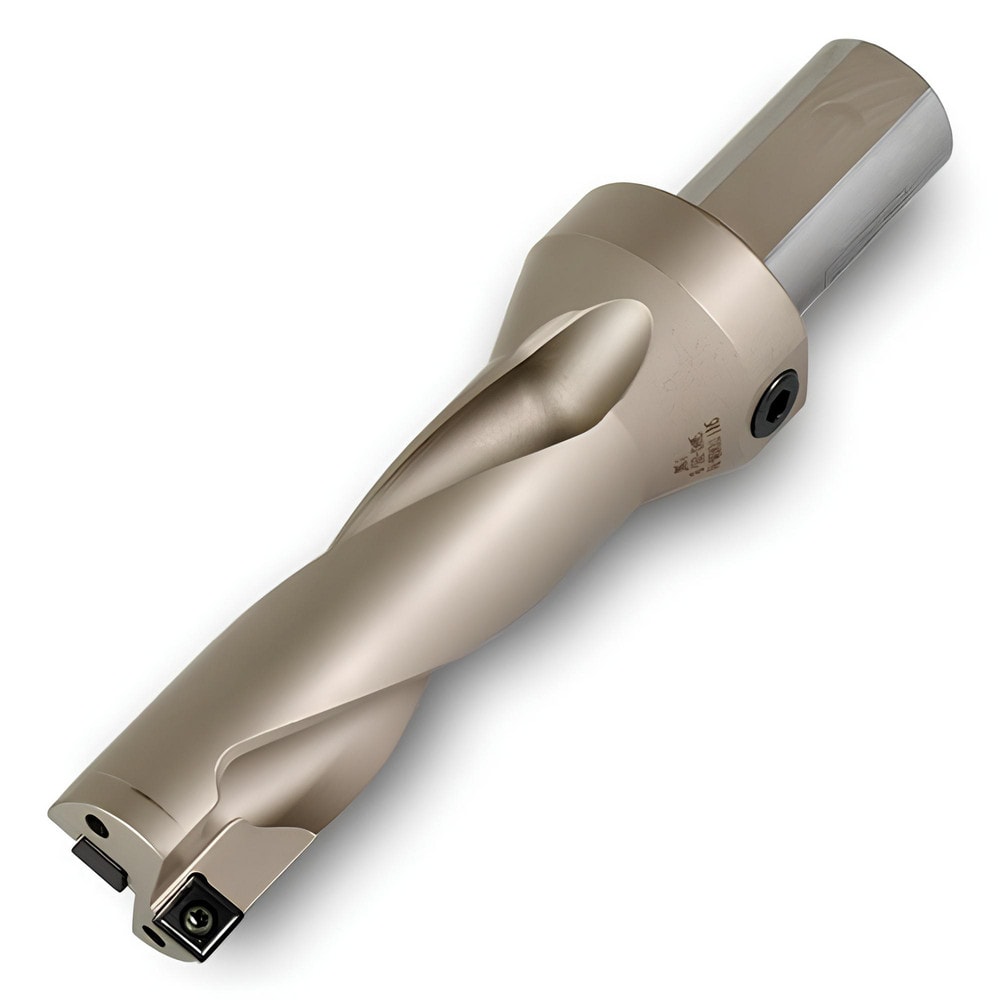

Brand: Ingersoll Cutting Tools / Part #: 3224071
Item #: 62549886
Brand: Ingersoll Cutting Tools
Model #: 3224071
Product Specifications
| Maximum Drill Depth | 2.6300 in |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Depth of Cut (Decimal Inch) | 2.6300 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Drill Body Length to Flange (Decimal Inch) | 3.8200 |
| Toolholder Style | QF02 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.8750 |
| Overall Length (Decimal Inch) | 6.0200 |
| Overall Length | 6.02 |
| Through Coolant | Yes |
| Series | QF |
| Flute Length (Decimal Inch) | 2.6300 |
| Shank Length (Decimal Inch) | 2.2100 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Flute Type | Slow Spiral |
| Maximum Cutting Diameter (Decimal Inch) | 0.8750 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
