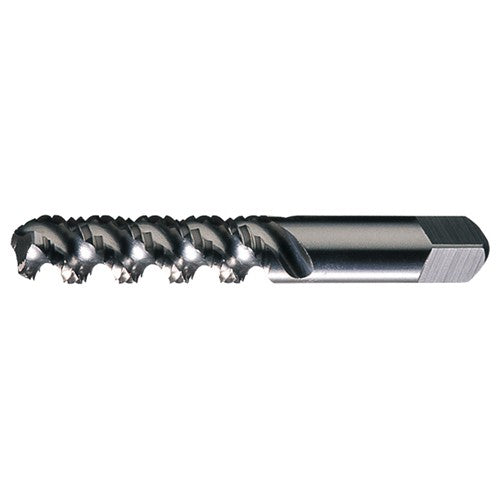

M10x1.5 3 Flute D6 HSS High Helix Bottoming Chamfer General Purpose High-Spiral Tap- Bright
Item #: CD73C58813
Brand: Cleveland
Model #: C58813
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Tool Type | Machine Tap |
| Thread Pitch (TP) | 1.5 mm |
| Chamfer | Bottoming |
| Overall Length (OAL) | 2.9375 |
| Coating | Bright |
| Thread Cutting Part Length (THL) | 31.75 mm |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 9.68 mm |
| End Shape | Square |
| Flute Count (NOF) | 3 |
| Style | Bottoming |
| Flute Helix Angle (FHA) | 52 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials |
| Length Group | 2D |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | D6 | 6H |
