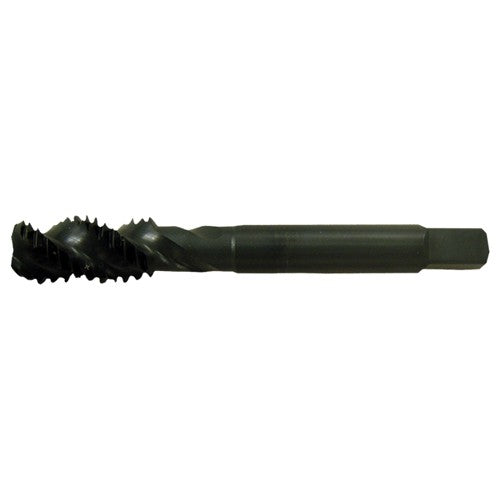

1/2-13 UNC 3 Flute H3 HSS CNC Heavy Duty Bottoming Chamfer Spiral Flute Tap- Steam Oxide
Item #: CD73C58453
Brand: Cleveland
Model #: C58453
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Thread Tolerance Class (TCTR) | H3 | 2B |
| Threads per Inch (TPI) | 13 |
| Tool Type | Machine Tap |
| Thread Standard | NC |
| Chamfer | Bottoming |
| Overall Length (OAL) | 3.38″ |
| Coating | Steam Oxide |
| Thread Cutting Part Length (THL) | 0.94″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| End Shape | Square |
| Flute Count (NOF) | 3 |
| Style | Bottoming |
| Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel |
| Length Group | 2.5D |
| Cutting Edge Material | HSS |
| Measurement Type | Inch |
