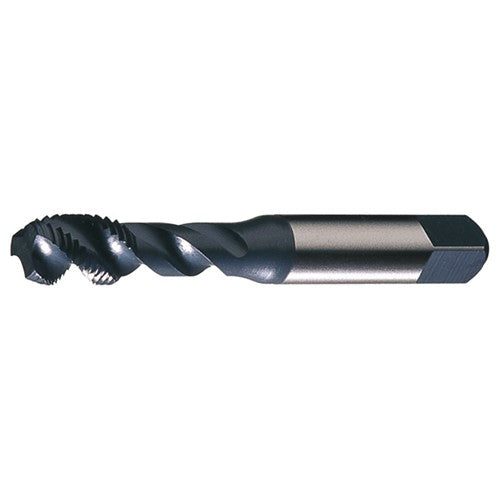

M5x0.8 3 Flute D4 HSS (M4) CNC For Soft Metals Spiral Flute for Steel and Stainless Steel- Steam Oxide
Item #: CD73C27931
Brand: Cleveland
Model #: C27931
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M5 |
| Tool Type | Machine Tap |
| Thread Pitch (TP) | 0.8 mm |
| Chamfer | Semi-Bottoming |
| Overall Length (OAL) | 2.375 |
| Coating | Steam Oxide |
| Thread Cutting Part Length (THL) | 12.7 mm |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 4.93 mm |
| End Shape | Square |
| Flute Count (NOF) | 3 |
| Style | Semi-Bottoming |
| Flute Helix Angle (FHA) | 42 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel |
| Length Group | 2.5D |
| Cutting Edge Material | HSS-E |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | D4 | 6H |
