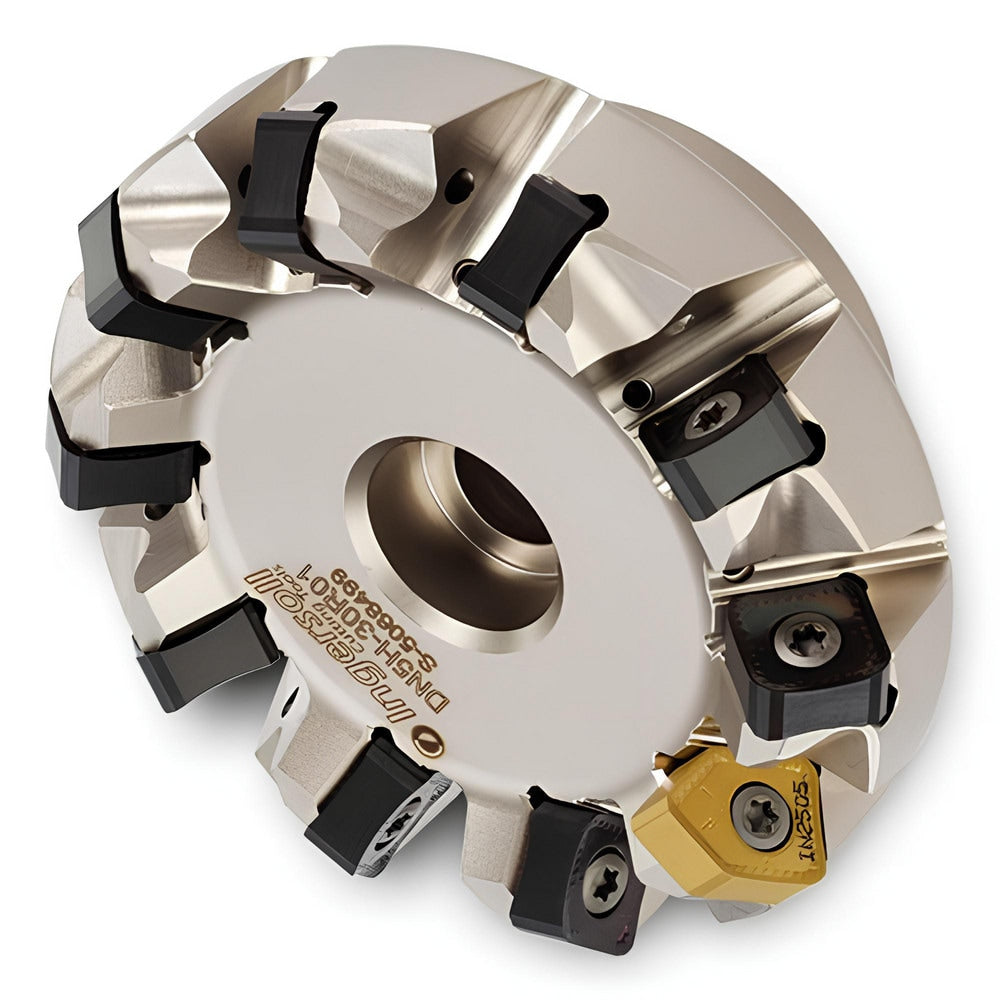

Brand: Ingersoll Cutting Tools / Part #: 3025633
Item #: 59578823
Brand: Ingersoll Cutting Tools
Model #: 3025633
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (mm) | 65.28 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5700 |
| Maximum Depth of Cut (Decimal Inch) | 0.2350 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 45.000 |
| Compatible Insert Size Code | 1205 |
| Cutter Style | DN5H |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | DN5H |
| Keyway Width (Decimal Inch) | 0.3120 |
| Keyway Width (Inch) | 5/16 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Pitch Type | Close |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | SNGx1205 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | DN5H-20R01 |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
| Number Of Flutes | 6 |
