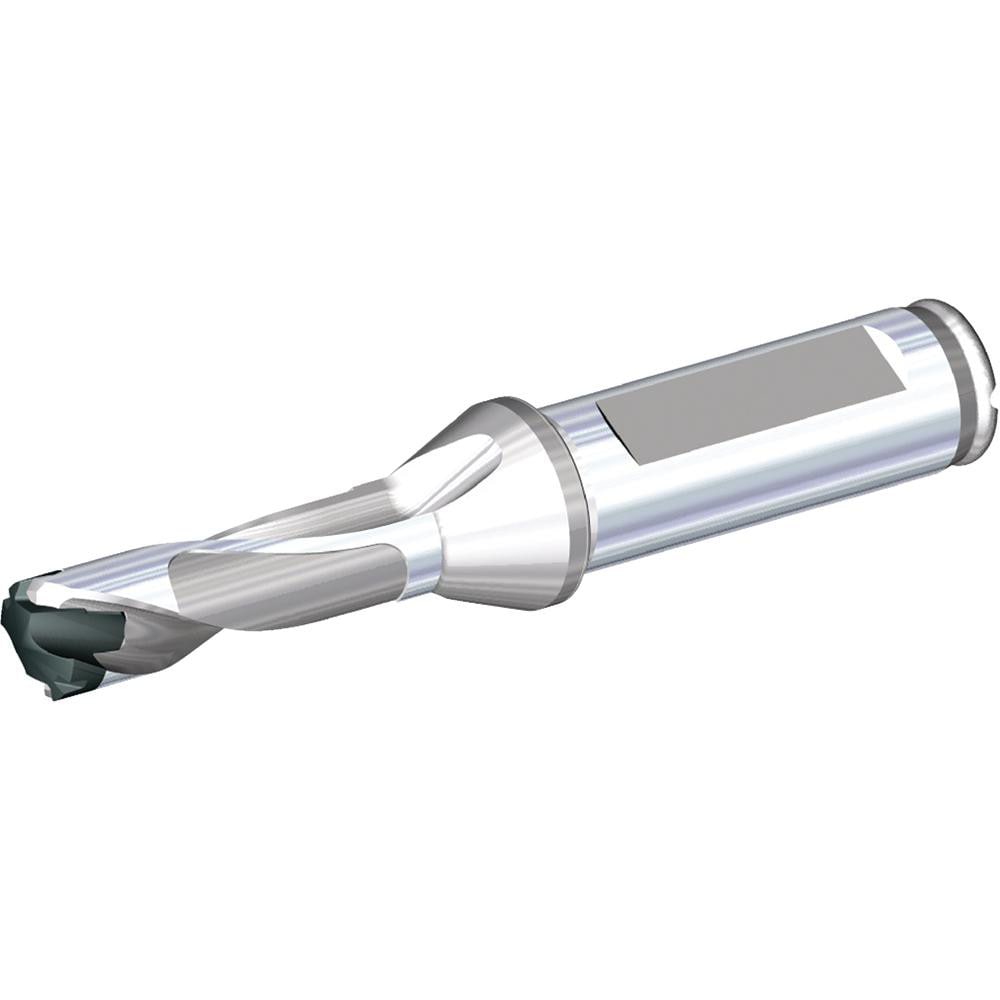

Brand: Widia / Part #: 4099018

Brand: Widia / Part #: 4099018


Item #: 90311028
Brand: Widia
Model #: 4099018

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.5315
Maximum Drill Diameter (Decimal Inch) 0.5508
Drill Depth by Diameter Ratio 3xD
Maximum Drill Depth (Decimal Inch) 1.6534
Shank Type Flatted
Insert Style TDM
Shank Diameter (Inch) 5/8
Shank Diameter (Decimal Inch) 0.6250
Insert Seat Size W21
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W21
Overall Length (Decimal Inch) 4.3898
Overall Length (Inch) 4-25/64
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 2.2835
Body Length (Decimal Inch) 2.2264
Shank Length (Decimal Inch) 1.8898
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.0984
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$243.22

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
