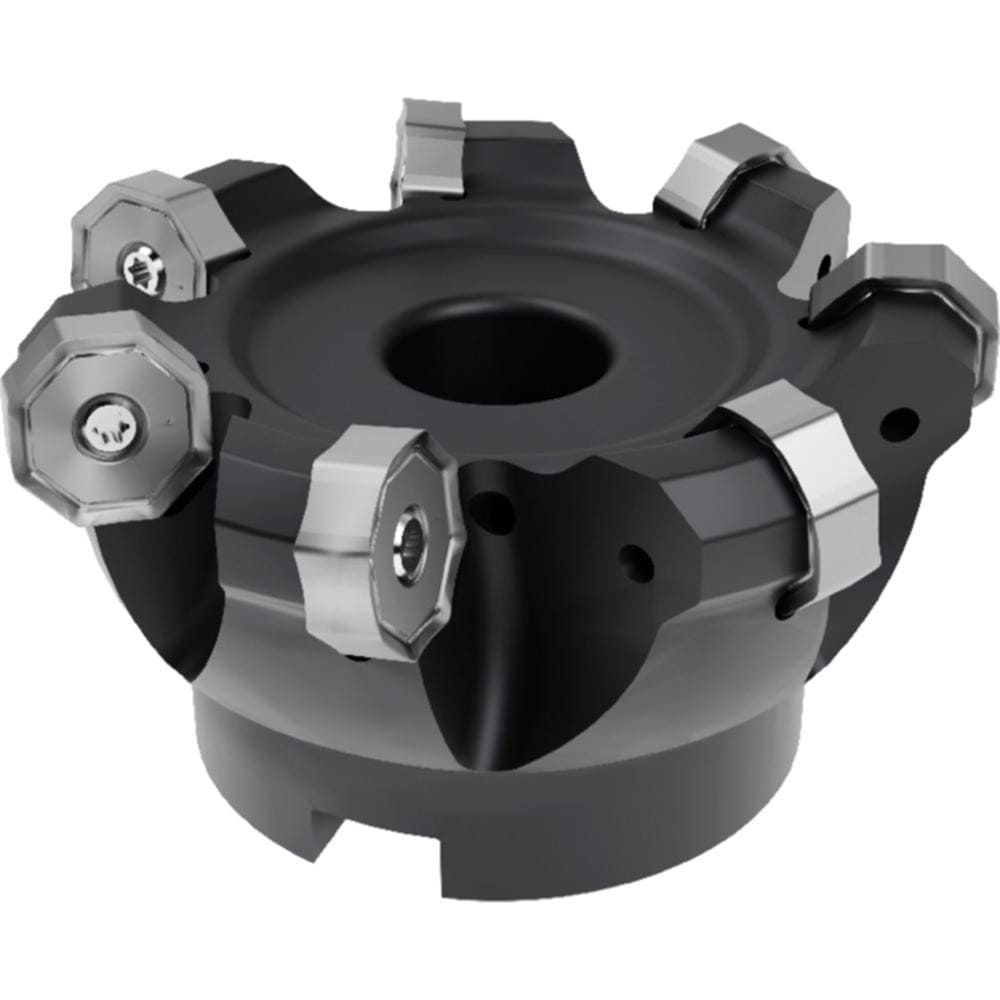

Brand: Widia / Part #: 6921231
Item #: 99561318
Brand: Widia
Model #: 6921231
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (Inch) | 3-27/64 |
| Maximum Cutting Diameter (Decimal Inch) | 3.4225 |
| Maximum Depth of Cut (Decimal Inch) | 0.1457 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 43.000 |
| Compatible Insert Size Code | 060512 |
| Cutter Style | M1600 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | M1600 |
| Hub Diameter (mm) | 69.850 |
| Hub Diameter (Inch) | 2-3/4 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Maximum Body Diameter (Decimal Inch) | 2.9669 |
| Maximum Body Diameter (mm) | 75.36 |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | ONGX |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | M1600U300Z07S100ON06 |
| Number Of Cutter Inserts | 7 |
| Coolant Through | Yes |
| Number Of Flutes | 7 |
