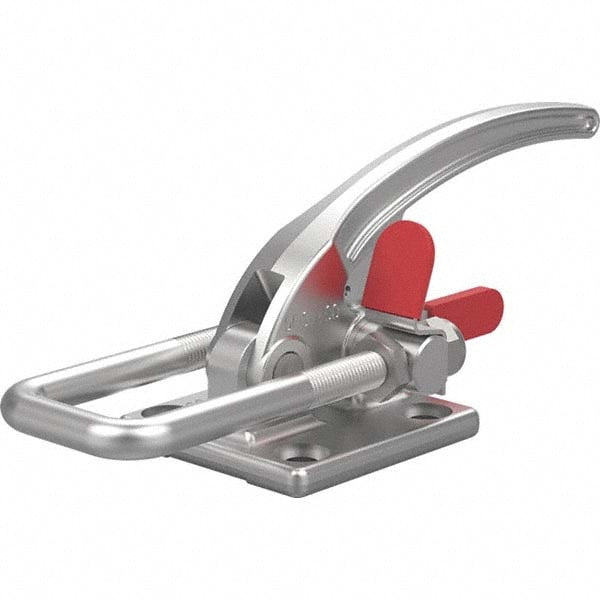

Brand: De-Sta-Co / Part #: 385-RSS
Item #: 16066599
Brand: De-Sta-Co
Model #: 385-RSS
Product Specifications
| Clamping Orientation | Horizontal |
| Bar Style | U-Hook |
| Load Capacity (N) | 33300.00 |
| Load Capacity (Lb. - 3 Decimals) | 7500.00 |
| Load Capacity | 3400.00 |
| Load Capacity | 7500 lb; 33300 N |
| Base Style | Flanged |
| Material | Stainless Steel |
| Body Material | Stainless Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 9.6500 |
| Overall Length (mm) | 245.10 |
| Overall Height (Mm - 5 Decimals) | 93.20 |
| Overall Height (Decimal Inch) | 3.6700 |
| Drawing Movement (mm) | 55.60 |
| Drawing Movement (Decimal Inch) | 2.1900 |
| Handle Color | Red |
| Base Length | 3.44 |
| Base Length (mm) | 87.40 |
| Base Width (Inch) | 3.1300 |
| Base Width | 79.40 |
| Mounting Hole Diameter (mm) | 10.30 |
| Mounting Hole Diameter | 0.4100 |
| Width Distance Between Mount Holes (Inch) | 2-1/4 |
| Width Distance Between Mount Holes (mm) | 57.20 |
| Length Distance Between Mount Holes (Inch) | 2-1/4 |
| Length Distance Between Mount Holes (Decimal Inch) | 2.2500 |
| Length Distance Between Mount Holes (mm) | 57.20 |
| Bar Width (Decimal Inch) | 0.4700 |
| Bar Width | 0.47 in; 12 mm |
| Bar Thickness (Decimal Inch) | 0.4700 |
| Bar Thickness (mm) | 12.00 |
| Base to Center of Bar (mm) | 28.60 |
| Base to Center of Bar (Decimal Inch) | 1.1300 |
| Includes | U-Hook; Thumb Tab; (4) Nuts; Clamp |
| Industry Number | 385-RSS |
| Hook Adjustment | 1.36 |
| Width Distance Between Mounting Holes | 2.2500 |
