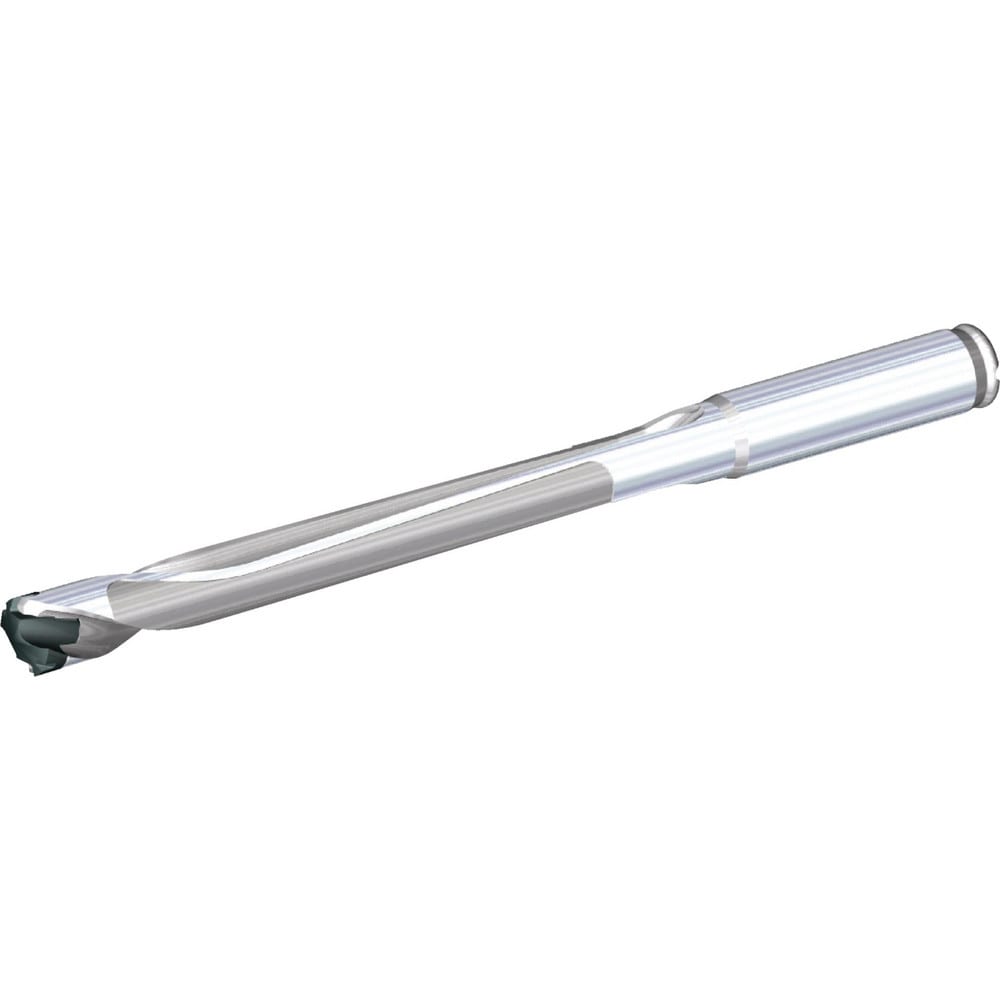

Brand: Widia / Part #: 3992539
Item #: 14917991
Brand: Widia
Model #: 3992539
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.3740 |
| Maximum Drill Diameter (Decimal Inch) | 0.3933 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 3.1496 |
| Shank Type | Cylindrical |
| Insert Style | TDM |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Seat Size | W13 |
| Tool Material | Steel |
| Compatible Insert Style | TDM |
| Compatible Insert Size Code | W13 |
| Overall Length (Decimal Inch) | 5.3740 |
| Series | TDM1 |
| Toolholder Style | TDM1 |
| Flute Length (Decimal Inch) | 3.6653 |
| Body Length (Decimal Inch) | 5.1780 |
| Shank Length (Decimal Inch) | 1.5902 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Tip Length (Decimal Inch) | 0.0669 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
