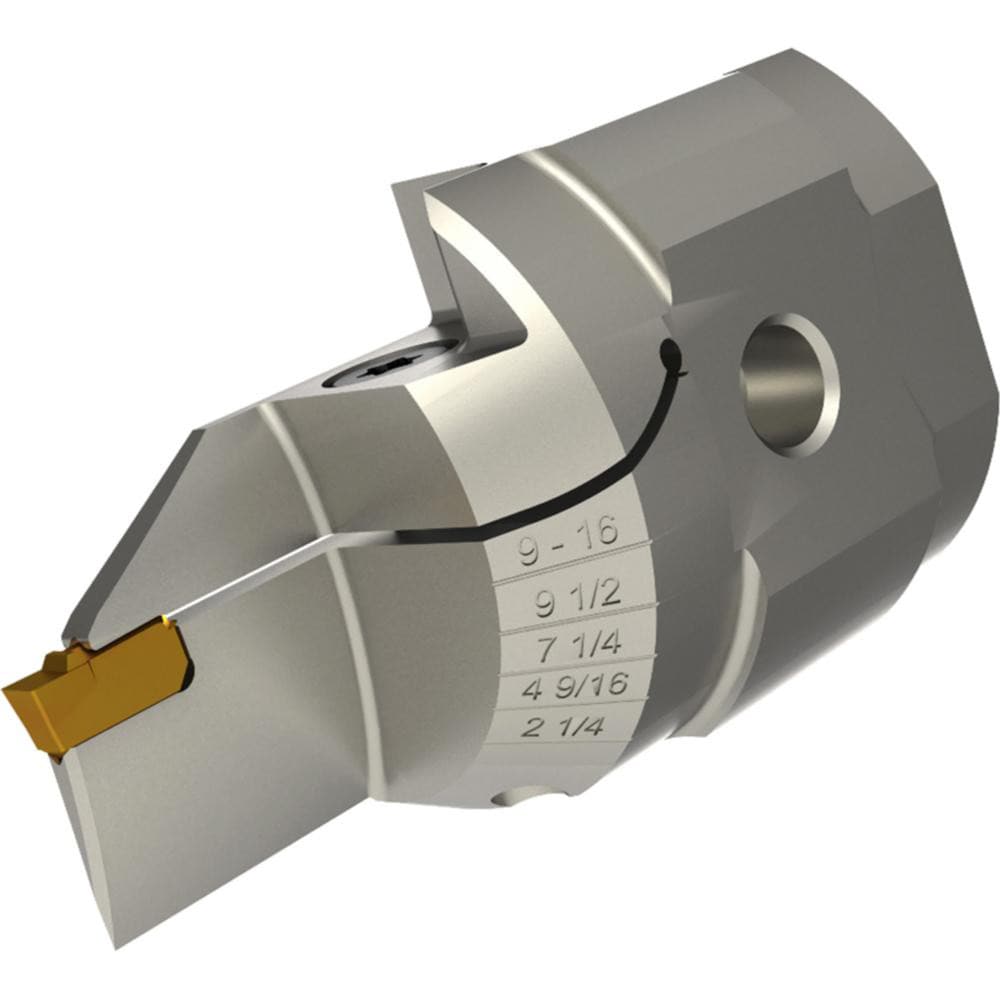

Brand: Widia / Part #: 6740388
Item #: 14426746
Brand: Widia
Model #: 6740388
Product Specifications
| Cutting Direction | Left Hand |
| Minimum Groove Width | 0.1250 in |
| Blade Style | Modular |
| Blade Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.7500 |
| Minimum Workpiece Diameter (Decimal Inch) | 2.2500 |
| Maximum Workpiece Diameter (Decimal Inch) | 16.0000 |
| Insert Holding Method | Clamp |
| Maximum Insert Width (Decimal Inch) | 0.1250 |
| Compatible Insert Style | WG; WR; WC |
| Compatible Insert Size Code | 3 |
| Series | WGCRM-B |
| Cutting Tool Application | Grooving; Cut-Off |
| Single Or Double End | Single |
| Blade Material | Steel |
