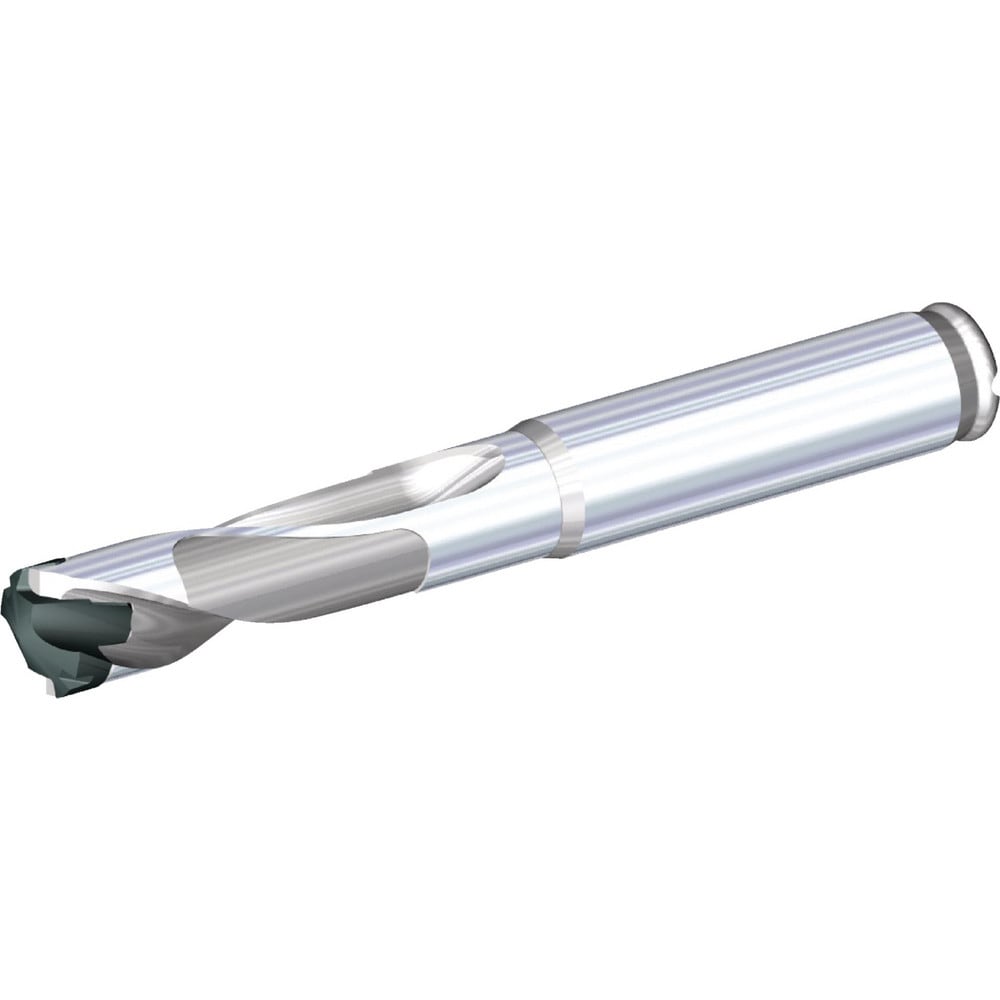

Brand: Widia / Part #: 3851572

Brand: Widia / Part #: 3851572


Item #: 84252147
Brand: Widia
Model #: 3851572

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.6299
Maximum Drill Diameter (Decimal Inch) 0.6689
Drill Depth by Diameter Ratio 3xD
Maximum Drill Depth (Decimal Inch) 2.0100
Shank Type Cylindrical
Insert Style TDM
Shank Diameter (Inch) 11/16
Shank Diameter (Decimal Inch) 0.6875
Insert Seat Size W25
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W25
Overall Length (Decimal Inch) 4.8750
Overall Length (Inch) 4-7/8
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 2.8460
Body Length (Decimal Inch) 2.8460
Shank Length (Decimal Inch) 1.9098
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.1193
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$241.19
