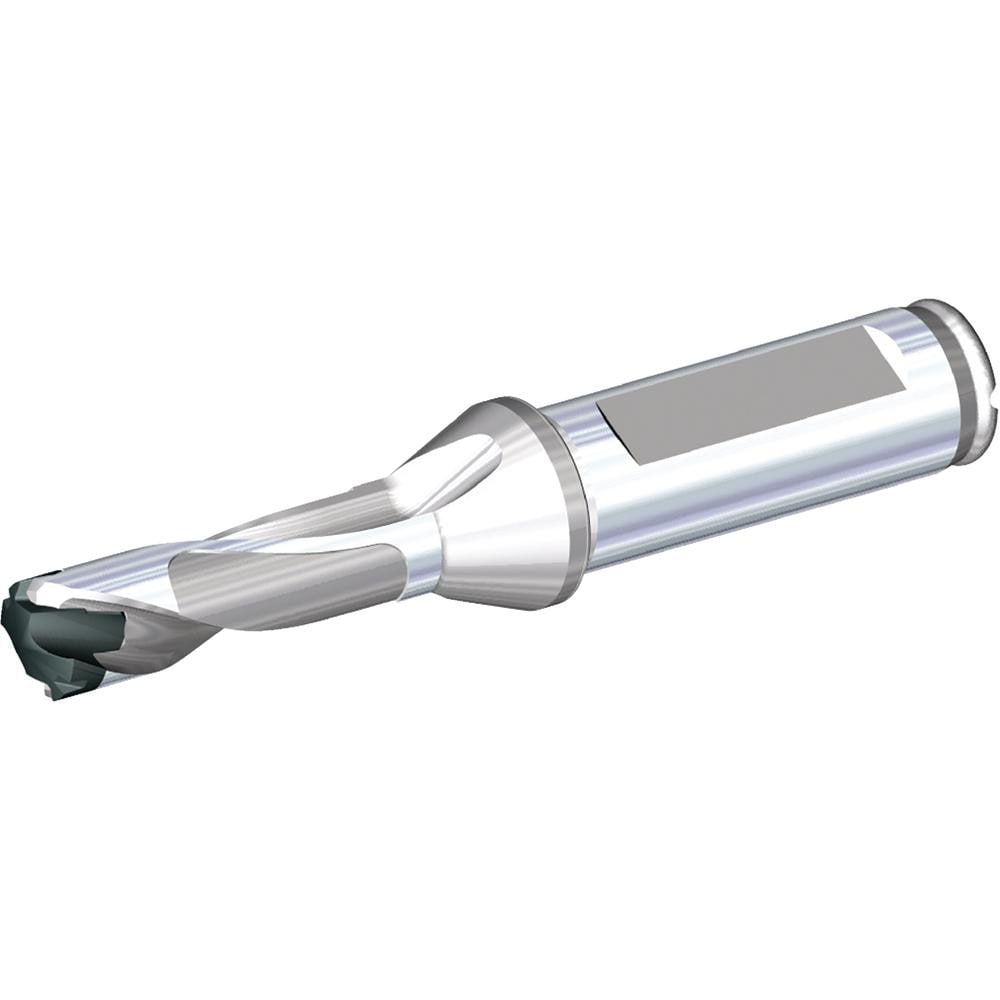

Brand: Widia / Part #: 4099017

Brand: Widia / Part #: 4099017


Item #: 90311473
Brand: Widia
Model #: 4099017

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.5118
Maximum Drill Diameter (Decimal Inch) 0.5311
Drill Depth by Diameter Ratio 3xD
Maximum Drill Depth (Fractional Inch) 1-19/32
Maximum Drill Depth (Decimal Inch) 1.5944
Shank Type Flatted
Insert Style TDM
Shank Diameter (Inch) 5/8
Shank Diameter (Decimal Inch) 0.6250
Insert Seat Size W20
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W20
Overall Length (Decimal Inch) 4.3898
Overall Length (Inch) 4-25/64
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 2.2835
Body Length (Decimal Inch) 2.2362
Shank Length (Decimal Inch) 1.8898
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.0929
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$243.22
