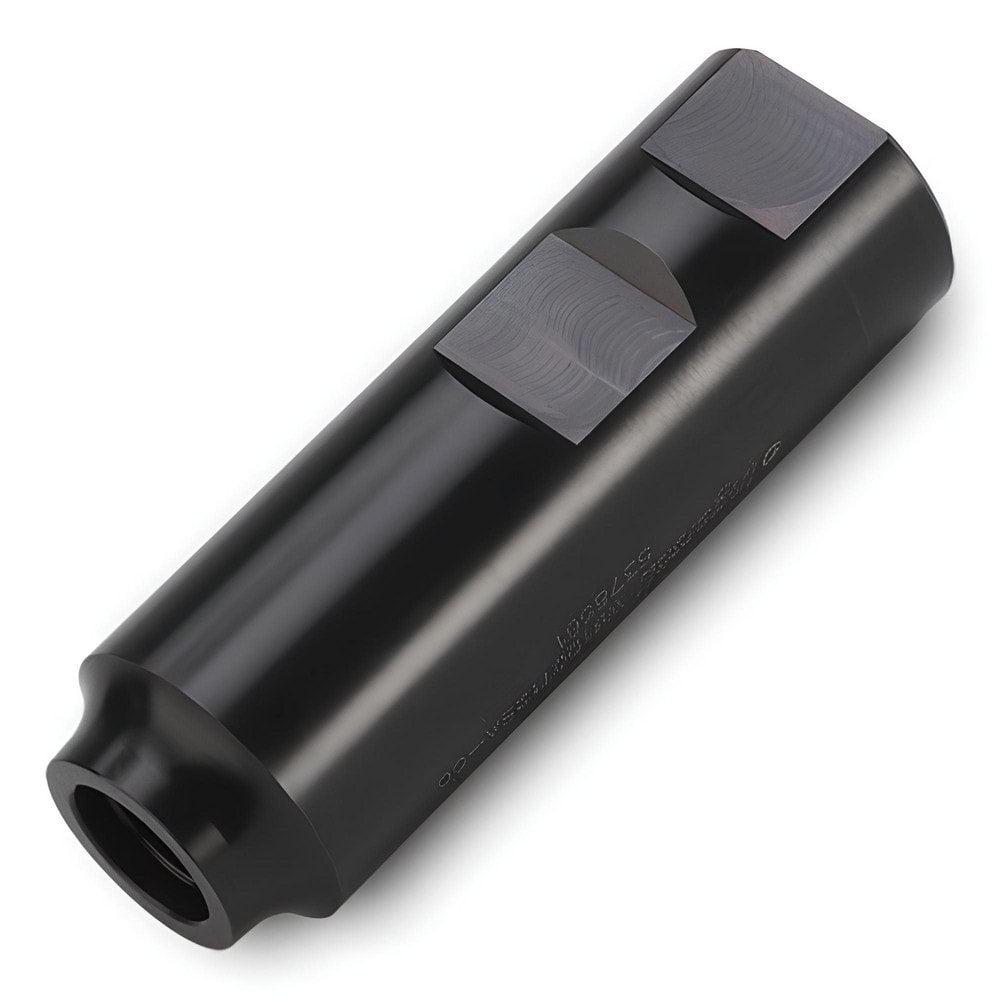

Brand: Ingersoll Cutting Tools / Part #: 4542795
Item #: 04011110
Brand: Ingersoll Cutting Tools
Model #: 4542795
Product Specifications
| Overall Length (Decimal Inch) | 2.7500 |
| Neck Diameter (Decimal Inch) | 0.6000 |
| Neck Thread Size | T10 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.6000 |
| Toolholder Style | W*T*SA |
| Tool Material | Steel |
| Series | W*T*SA |
| Tip Connection Size | T10 |
| Tool Application | Chamfering; Milling |
| Tool Performance | General Purpose |
| For Use With | Milling Tips |
| Weldon Flat | Yes |
| Effective Length (Decimal Inch) | 0.1300 |
| Shank Shape | Round |
| Thread Size Connection to Tip | T10 |
| Manufacturers Catalog Number | WB075T10SA-00 |
| Type | "T" Style Thread Connection |
| Coolant Through | No |
