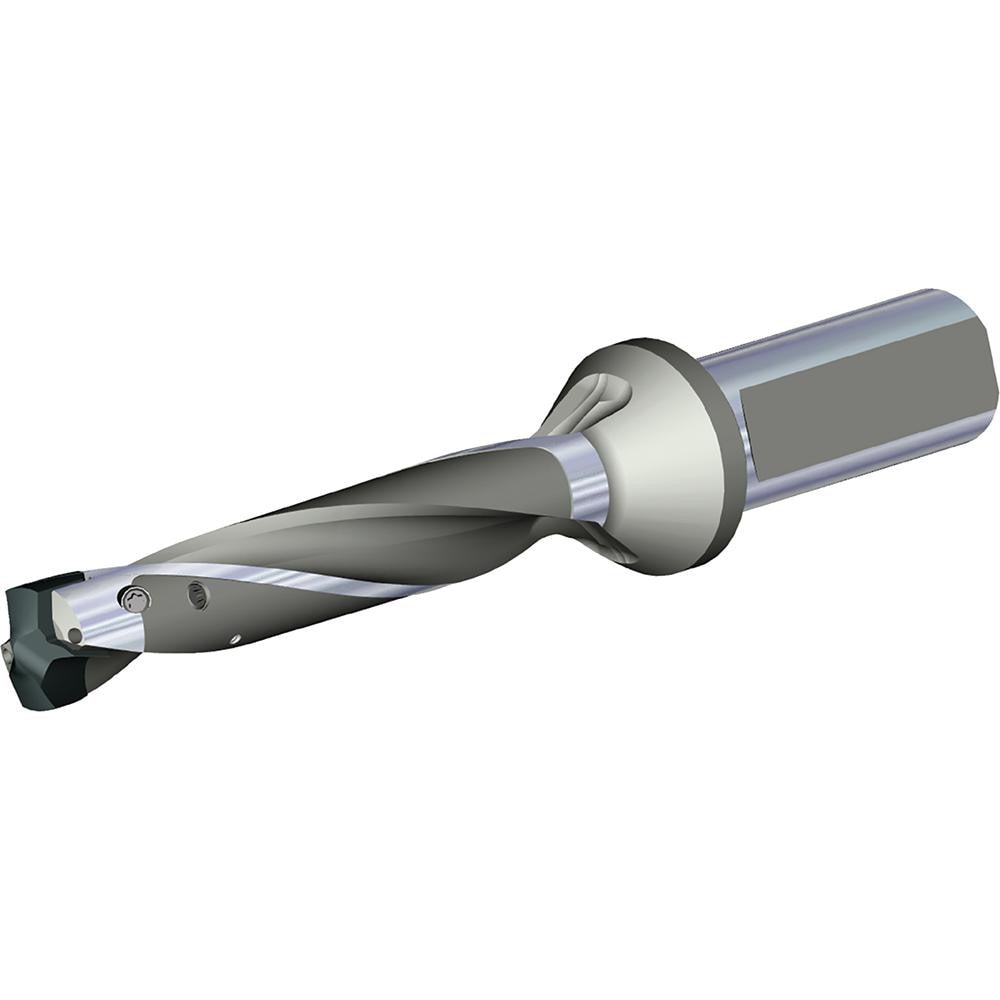

Brand: Widia / Part #: 6572240

Brand: Widia / Part #: 6572240


Item #: 90309881
Brand: Widia
Model #: 6572240

Product Specifications

Minimum Drill Diameter (Decimal Inch) 1.1418
Maximum Drill Diameter (Decimal Inch) 1.1811
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (Fractional Inch) 5-29/32
Maximum Drill Depth (Decimal Inch) 5.9055
Shank Type Flatted
Insert Style TDMX
Shank Diameter (Inch) 1-1/4
Shank Diameter (Decimal Inch) 1.2500
Insert Seat Size N
Tool Material Steel
Compatible Insert Style TDMX
Compatible Insert Size Code N
Overall Length (Decimal Inch) 10.2362
Series TDMX
Toolholder Style TDMX
Flute Length (Decimal Inch) 5.9055
Body Length (Decimal Inch) 7.1339
Shank Length (Decimal Inch) 2.3622
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Coolant Hole Diameter (Decimal Inch) 0.1969
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$674.33
