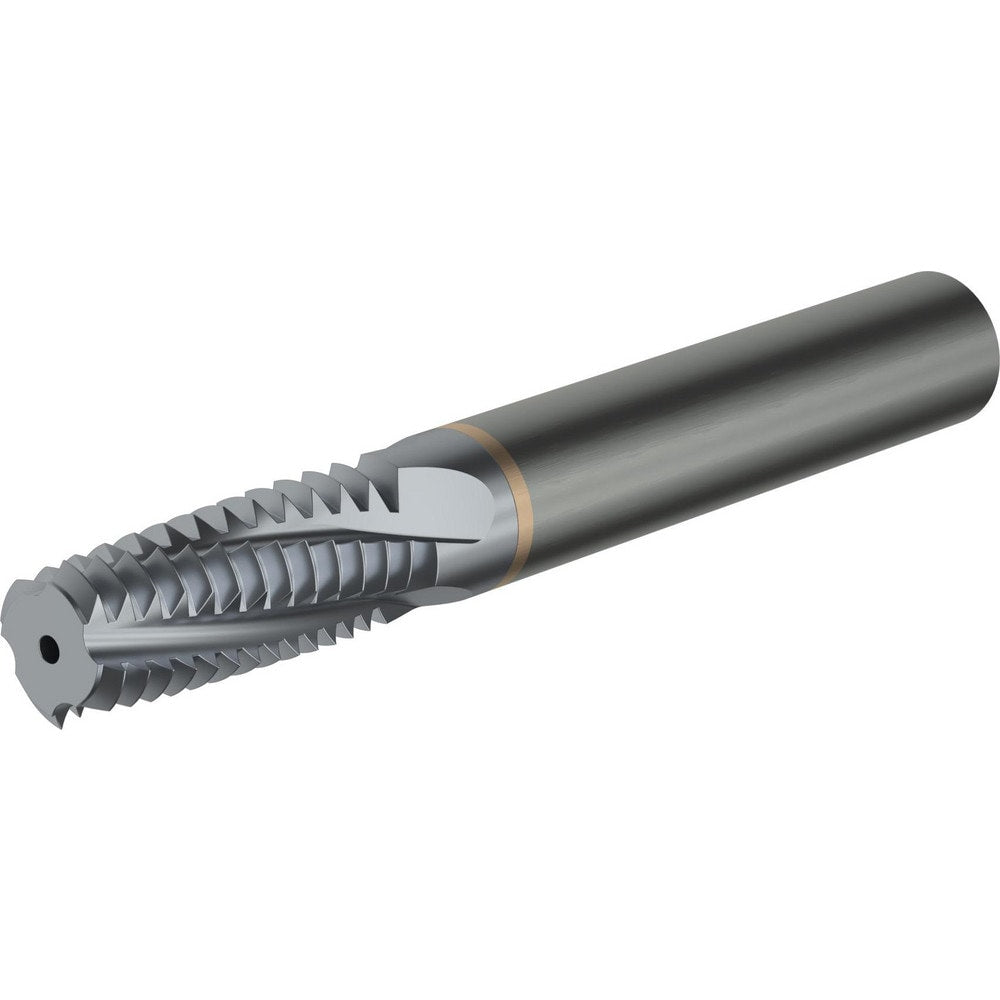

Brand: Vargus / Part #: 049-00003
Item #: 88215710
Brand: Vargus
Model #: 049-00003
Product Specifications
| Material | Carbide |
| Thread Size (mm) | M4x0.7 |
| Thread Depth (Decimal Inch) | 0.342 |
| Thread Type | Internal |
| Shank Diameter (mm) | 3.0000 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Cutting Diameter (mm) | 2.90 |
| Cutting Diameter (Decimal Inch) | 0.1142 |
| Length of Cut (mm) | 8.7000 |
| Minimum Nominal Diameter (Decimal Inch) | 0.1575 |
| Minimum Nominal Diameter (mm) | M4 |
| Shank Length (Decimal Inch) | 1.4110 |
| Shank Length (mm) | 18.000 |
| Overall Length (mm) | 30.0000 |
| Overall Length (Decimal Inch) | 1.1811 |
| Number Of Flutes | 4 |
| Coating/Finish | TiCN |
| Coolant Through | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3425 |
| Thread Length (mm) | 8.70 |
| Thread Length (Decimal Inch) | 2.9190 |
