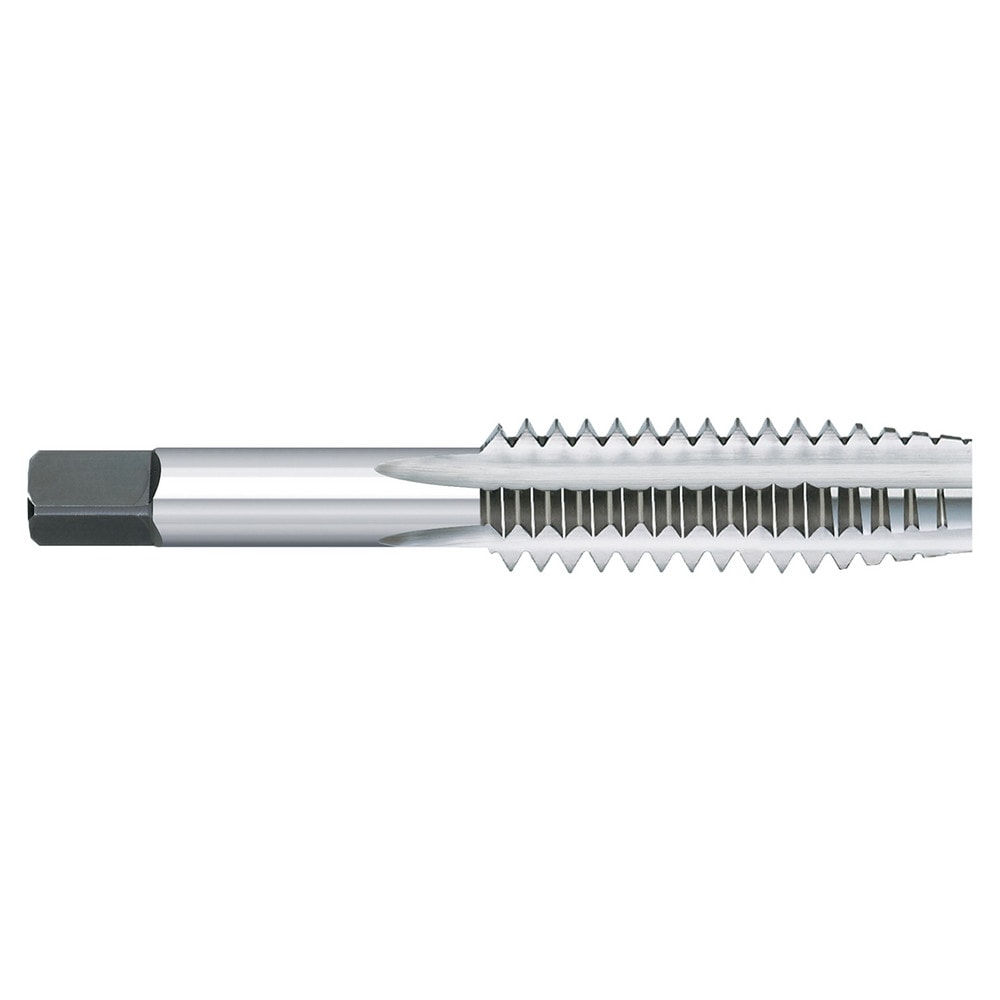

Brand: Titan USA / Part #: TT90752
Item #: 87437729
Brand: Titan USA
Model #: TT90752
Product Specifications
| Thread Size (Inch) | 3-8 |
| Thread Limit | H8 |
| Class Of Fit | 2B/3B |
| Number Of Flutes | 6 |
| Chamfer | Taper |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 8 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UN |
| Overall Length (Inch) | 9-3/4 |
| Thread Pitch (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 9.7500 |
| Thread Length (Decimal Inch) | 4.5625 |
| Thread Length (Inch) | 4-9/16 |
| Shank Diameter (Decimal Inch) | 2.5430 |
| Square Length (Inch) | 1-5/8 |
| Square Size (Decimal Inch) | 1.9070 |
| Series | General Purpose Taps - High Speed Steel - Hand Taps - 8 Pitch |
