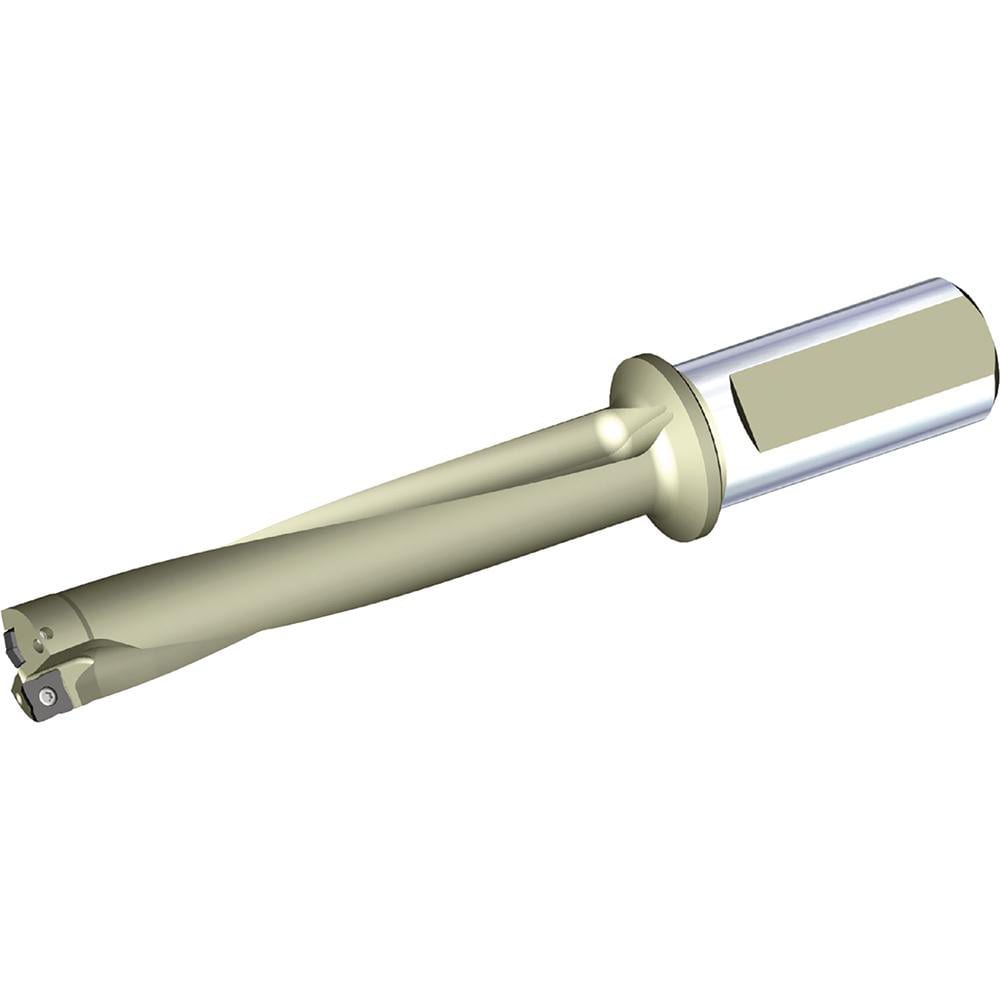

Brand: Widia / Part #: 5538687

Brand: Widia / Part #: 5538687


Item #: 97072920
Brand: Widia
Model #: 5538687

Product Specifications

Maximum Drill Depth 12.8850 in
Drill Depth by Diameter Ratio 5xD
Maximum Depth of Cut (mm) 327.28
Shank Type Weldon Flat
Shank Diameter (mm) 40.0000
Shank Diameter (Decimal Inch) 1.5748
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 377.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 65.00
Overall Length (mm) 449.2800
Overall Length 449.28
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 372.80
Shank Length (mm) 70.000
Gage Length (mm) 379.28
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (mm) 65.00
Projection (mm) 379.280
Number Of Flutes 2
Coolant Through Yes
$815.21
