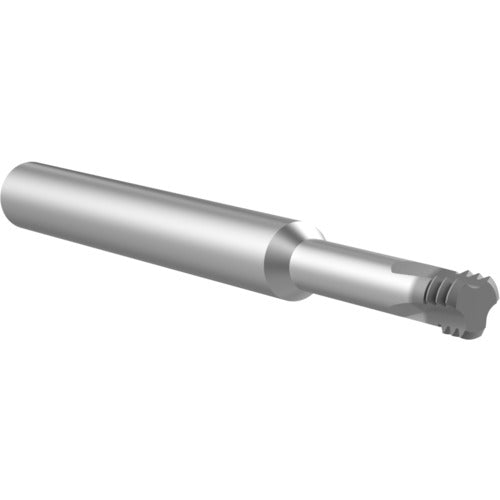

TM30050M-3T2X THREADMILL
Item #: BA54T30050M3T2X
Brand: Allied Machine and Eng.
Model #: TM30050M-3T2X
| Product Specifications | |
|---|---|
| Thread Size | M3 |
| Coolant Supply Property (CSP) | External |
| Thread Pitch (TP) | 0.5 mm |
| Shank Type | Cylindrical |
| Thread Diameter Size (TDZ) | M3 |
| Coating | AM210 |
| Thread Standard | ISO |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Flute Type | Helical |
| Cutting Diameter (DC) | 2.36 mm |
| Measurement Type | Metric |
| Functional Length (LF) | 6.6 mm |
| Length Group | 2xD |
| Overall Length (OAL) | 63 mm |
| Tool Type | Solid Carbide Threadmill |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Left Hand (M04) |
